1-1827875-6 | TE Connectivity

Pin header, 12 pole, pitch 2.5 mm, straight, black, 1-1827875-6

Order No.: 38P6809
EAN: 4099889973211
MPN:
1-1827875-6
Series: DYNAMIC

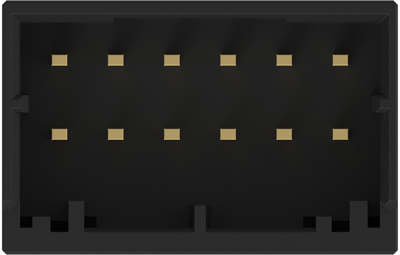

1-1827875-6 TE Connectivity PCB Connection Systems Image 1

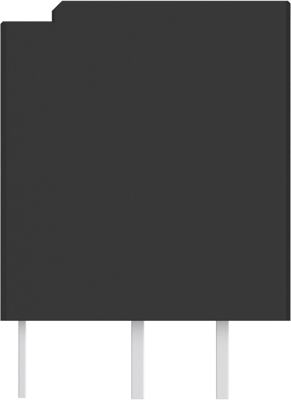

1-1827875-6 TE Connectivity PCB Connection Systems Image 2

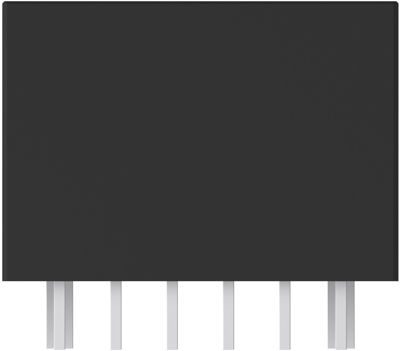

1-1827875-6 TE Connectivity PCB Connection Systems Image 3

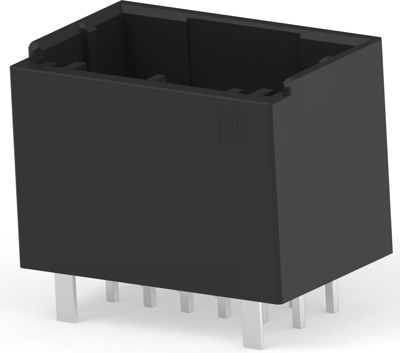

1-1827875-6 TE Connectivity PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
5.8786 € *
Available: 0 pcs.
Available in 5 Days: 130 pcs.
Leadtime: 22 Weeks **
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
10 pcs.
5.4026 €
50 pcs.
4.8671 €
100 pcs.
4.3792 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-1827875-6, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 12 Position

Technical Data

  • Contact Type: Male
  • Housing Material: Polyester
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.5 mm
  • Row-to-Row Spacing: 3.3 mm [0.13 in]
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe schwarz
Kontaktart Stift
Kontaktoberfläche vergoldet
Nennspannung 250 V
Nennstrom 5 A
Orientierung gerade
Polzahl 12-polig
Rastermaß 2.5 mm
Verriegelung Ja
Logistics
Ursprungsland CZ
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
