1-1903127-7 | TE Connectivity

Plug housing, 34 pole, pitch 2 mm, straight, black, 1-1903127-7

Order No.: 38P6800
EAN: 4099889973129
MPN:
1-1903127-7
Series: DYNAMIC

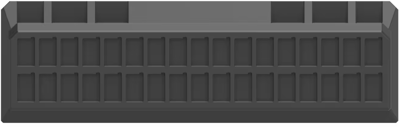

1-1903127-7 TE Connectivity PCB Connection Systems Image 1

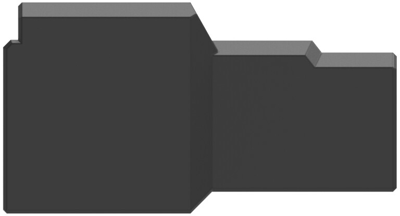

1-1903127-7 TE Connectivity PCB Connection Systems Image 2

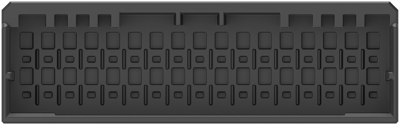

1-1903127-7 TE Connectivity PCB Connection Systems Image 3

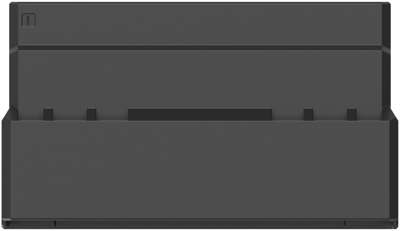

1-1903127-7 TE Connectivity PCB Connection Systems Image 4

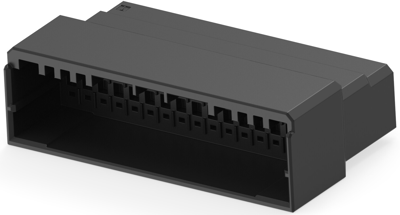

1-1903127-7 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.5708 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
2,513.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1600 pcs.
1.5708 €

PCB Connection System, 1-1903127-7, TE Connectivity

Wire-to-Wire, Wire & Cable, 34 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 34
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2 mm
  • Row-to-Row Spacing: 3.3 mm [0.129 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Steckergehäuse
Bestückung unbestückt
Brechbar No
Farbe schwarz
Kontaktart Tab
Nennspannung 150 V
Orientierung gerade
Polzahl 34-polig
Rastermaß 2 mm
Verriegelung Nein
Logistics
Ursprungsland TH
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
