1-1903128-3 | TE Connectivity

Plug housing, 26 pole, pitch 2 mm, straight, black, 1-1903128-3

Order No.: 38P6798
EAN: 4099889973105
MPN:
1-1903128-3
Series: DYNAMIC

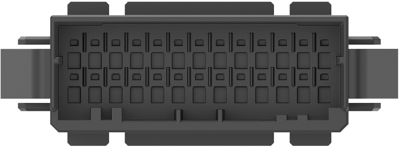

1-1903128-3 TE Connectivity PCB Connection Systems Image 1

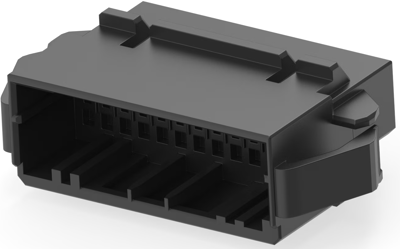

1-1903128-3 TE Connectivity PCB Connection Systems Image 2

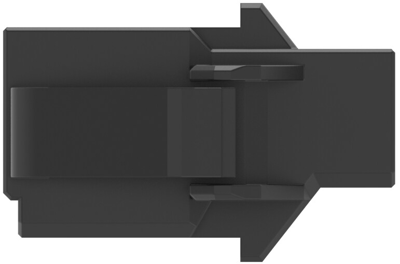

1-1903128-3 TE Connectivity PCB Connection Systems Image 3

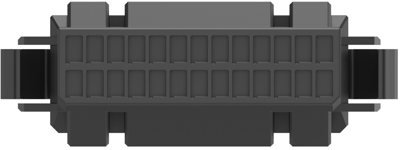

1-1903128-3 TE Connectivity PCB Connection Systems Image 4
1-1903128-3 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.9393 € *
Available: 0 pcs.
Available in 5 Days: 800 pcs.
Leadtime: 20 Weeks **
Total Price:
2.94 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.9393 €

PCB Connection System, 1-1903128-3, TE Connectivity

Wire-to-Panel, Wire & Cable, 26 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 26
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2 mm
  • Row-to-Row Spacing: 3.3 mm [0.129 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Steckergehäuse
Bestückung unbestückt
Brechbar No
Farbe schwarz
Kontaktart Tab
Nennspannung 150 V
Orientierung gerade
Polzahl 26-polig
Rastermaß 2 mm
Verriegelung Nein
Logistics
Ursprungsland TH
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
