1-1903129-2 | TE Connectivity

Plug housing, 2 pole, pitch 2.5 mm, straight, black, 1-1903129-2

Order No.: 38P6843
EAN: 4099889973532
MPN:
1-1903129-2
Series: DYNAMIC

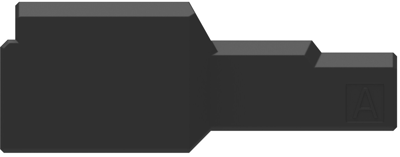

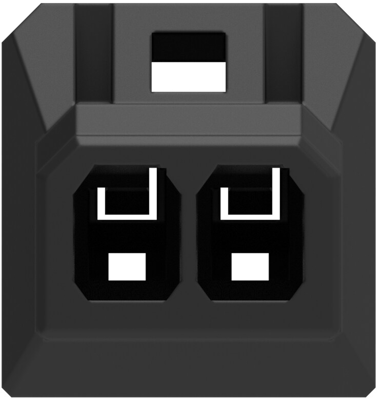

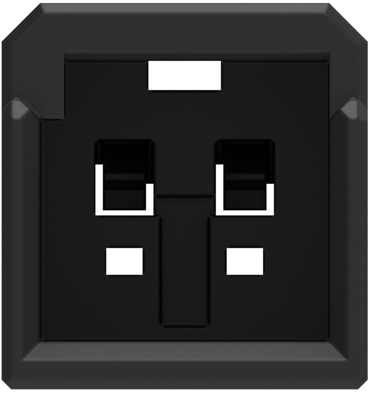

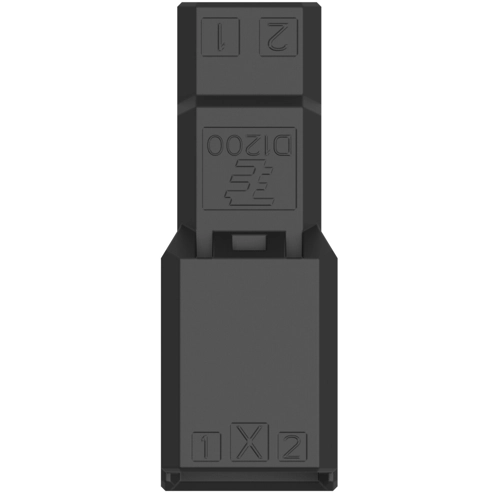

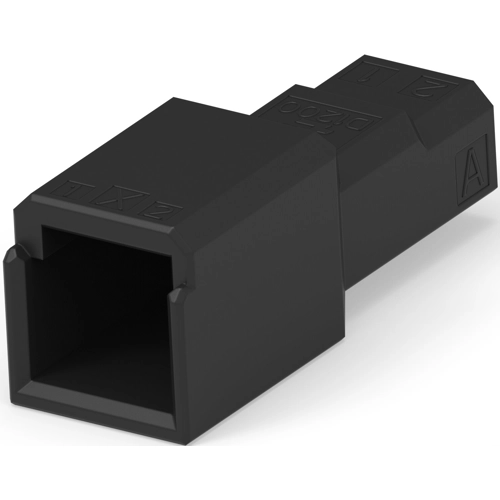

1-1903129-2 TE Connectivity PCB Connection Systems Image 1
1-1903129-2 TE Connectivity PCB Connection Systems Image 2
1-1903129-2 TE Connectivity PCB Connection Systems Image 3
1-1903129-2 TE Connectivity PCB Connection Systems Image 4
1-1903129-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Available in 5 Days: 15,880 pcs.
Leadtime: 14 Weeks **
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-1903129-2, TE Connectivity

Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Steckergehäuse
Bestückung unbestückt
Brechbar No
Farbe schwarz
Kontaktart Tab
Nennspannung 150 V
Orientierung gerade
Polzahl 2-polig
Rastermaß 2.5 mm
Verriegelung Nein
Logistics
Ursprungsland JP
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
