1-1903131-2 | TE Connectivity

Plug housing, 4 pole, pitch 2.5 mm, straight, black, 1-1903131-2

Order No.: 38P6835
EAN: 4099889973457
MPN:
1-1903131-2
Series: DYNAMIC

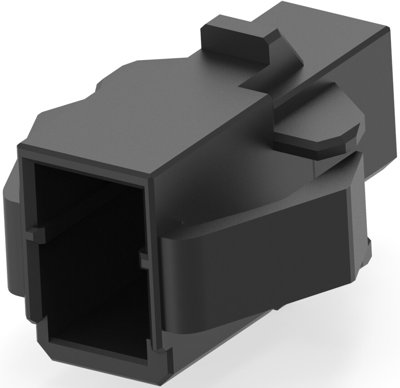

1-1903131-2 TE Connectivity PCB Connection Systems Image 1

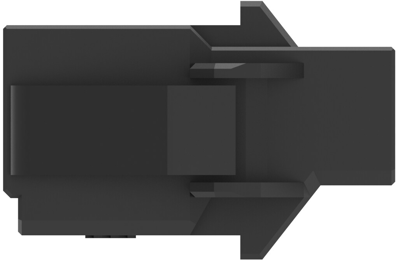

1-1903131-2 TE Connectivity PCB Connection Systems Image 2

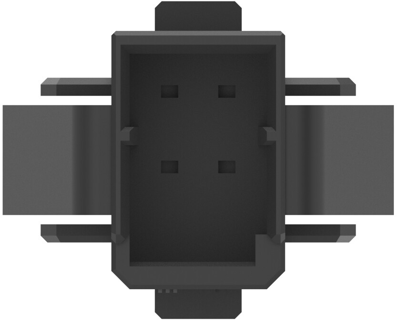

1-1903131-2 TE Connectivity PCB Connection Systems Image 3

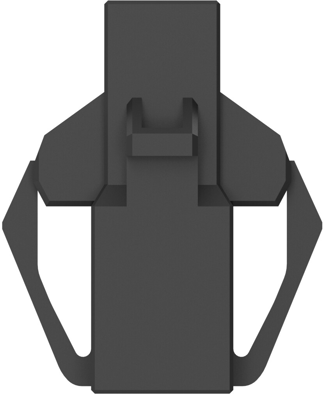

1-1903131-2 TE Connectivity PCB Connection Systems Image 4

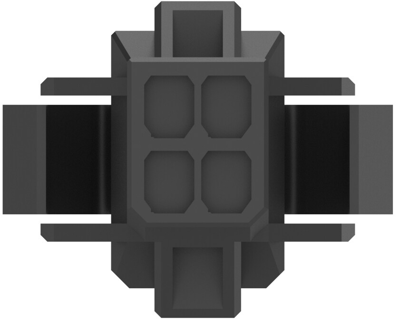

1-1903131-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.1662 € *
Available: 0 pcs.
Available in 5 Days: 2,000 pcs.
Leadtime: 14 Weeks **
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
10 pcs.
1.0472 €
50 pcs.
0.9401 €
100 pcs.
0.8449 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-1903131-2, TE Connectivity

Wire-to-Panel, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • Row-to-Row Spacing: 3.3 mm [0.129 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Steckergehäuse
Bestückung unbestückt
Brechbar No
Farbe schwarz
Kontaktart Tab
Nennspannung 150 V
Orientierung gerade
Polzahl 4-polig
Rastermaß 2.5 mm
Verriegelung Nein
Logistics
Ursprungsland TH
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
