1-1969688-4 | TE Connectivity

Pin header, 4 pole, pitch 6 mm, straight, gray, 1-1969688-4

Order No.: 35P3788
EAN: 4099889931471
MPN:
1-1969688-4

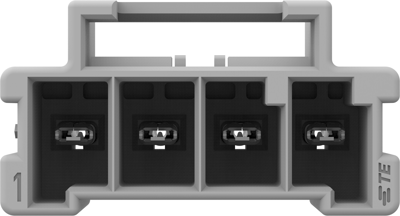

1-1969688-4 TE Connectivity PCB Connection Systems Image 1

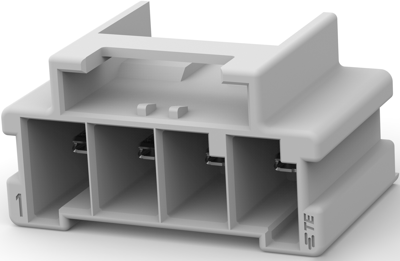

1-1969688-4 TE Connectivity PCB Connection Systems Image 2

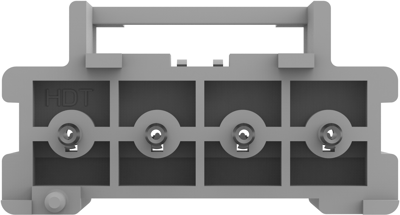

1-1969688-4 TE Connectivity PCB Connection Systems Image 3

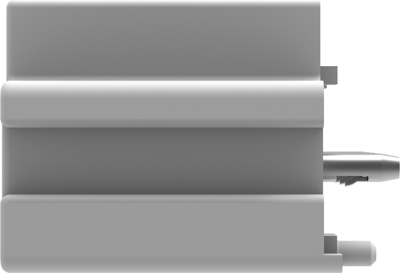

1-1969688-4 TE Connectivity PCB Connection Systems Image 4

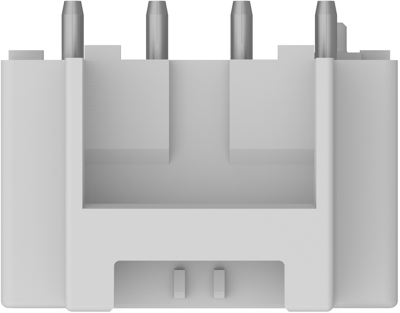

1-1969688-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2491 € *
Available: 0 pcs.
Available in 5 Days: 151,150 pcs.
Leadtime: 21 Weeks **
Total Price:
2.25 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2491 €
10 pcs.
2.0468 €
50 pcs.
1.8445 €
100 pcs.
1.6541 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-1969688-4, TE Connectivity

Wire-to-Board, Printed Circuit Board, Vertical, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon
  • Housing Color: gray
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -55 – 150 °C [-67 – 302 °F]
  • Rated current: 19 A
  • Centerline (Pitch): 6 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche vorverzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe grau
Kontaktart Stift
Kontaktoberfläche vorverzinnt
Nennspannung 600 V
Nennstrom 20 A
Orientierung gerade
Polzahl 4-polig
Rastermaß 6 mm
Verriegelung Ja
Logistics
Ursprungsland IN
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
