1-1971772-4 | TE Connectivity

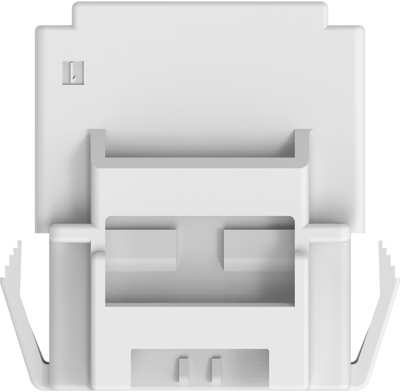

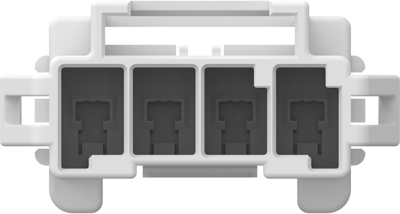

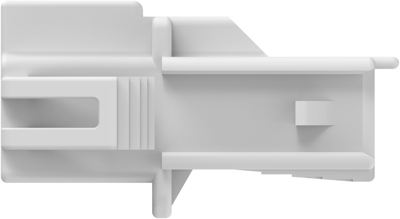

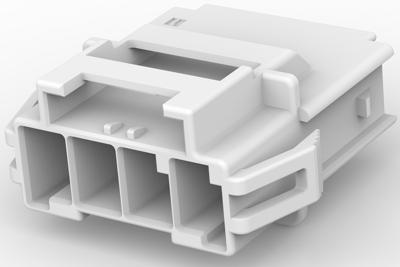

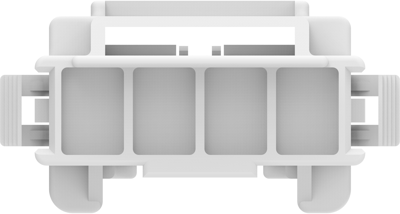

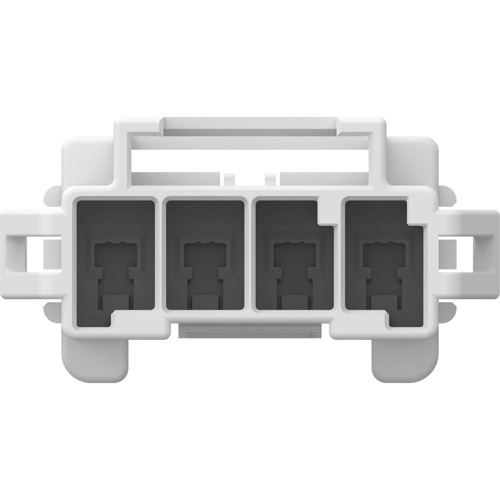

Socket housing, 4 pole, pitch 6 mm, straight, natural, 1-1971772-4
Receptacle housings, front panel mount, single-row.
Housing lock CPA, flame retardant to Ul 94 V-0, for applications with higher current and signal levels, increased functional safety by means of 3 types of locking mechanism, snap-lock (with acoustic feedback when snapped in securely, side fins around the snap-lock elements to prevent pinching of the wires), optional housing lock (CPA) and optional contact lock (TPA), 6.0 mm grid, single/double row or matrix.Rated voltage: 600 V AC/DC. Rated current: max. 20 A. Housing material: PBT, UL 94 V-0. Contacts: tinned copper alloy. Operating temperatures: - 55 to +105 °C. Certifications: cURus.
Technical attributes (type, dimensions (A, B, C, D)): 1-1971772-4, 4-pole, 27.7 mm, 21.5 mm, 33.5 mm, 25.3 mm
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | unbestückt | |
| Brechbar | No | |
| Farbe | natur | |
| Kontaktart | Tab | |
| Nennspannung | 600 V | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Rastermaß | 6 mm | |
| Verriegelung | Ja |
| Ursprungsland | CZ |
| Zolltarifnummer | 85472000 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
