1-1971817-5 | TE Connectivity

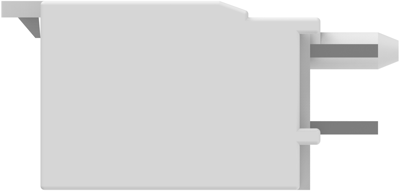

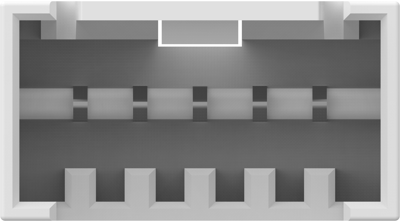

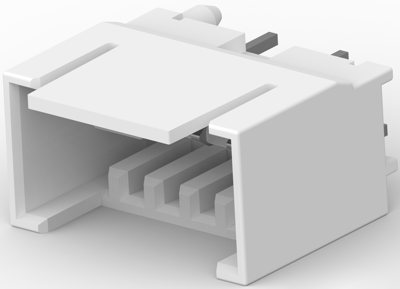

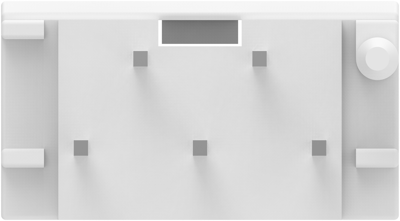

Pin header, 5 pole, pitch 2.5 mm, straight, natural, 1-1971817-5
Order No.: 35P4113
EAN: 4099889932522
MPN:
1-1971817-5
Unit Price (€ / pc.)
0.6783 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
PCB Connection System, 1-1971817-5, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 5 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 5
- Operating Temperature Range: -40 – 120 °C [-40 – 248 °F]
- Rated current: 6 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 5-polig | |
| Grid | 2.5 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | verzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 2 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | natur |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
