1-1971818-1 | TE Connectivity

Pin header, 11 pole, pitch 2.5 mm, straight, natural, 1-1971818-1

Order No.: 35P4105
EAN: 4099889932447
MPN:
1-1971818-1
Series: RAST 2.5

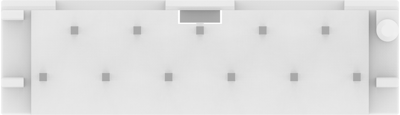

1-1971818-1 TE Connectivity PCB Connection Systems Image 1

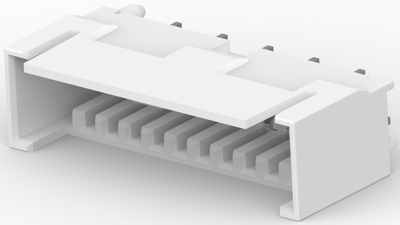

1-1971818-1 TE Connectivity PCB Connection Systems Image 2

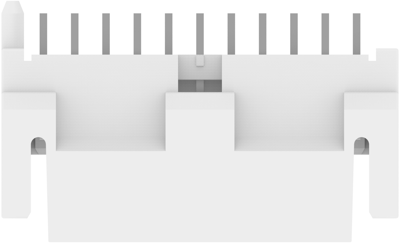

1-1971818-1 TE Connectivity PCB Connection Systems Image 3

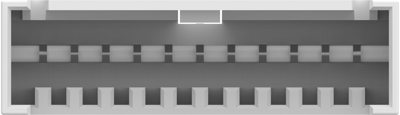

1-1971818-1 TE Connectivity PCB Connection Systems Image 4

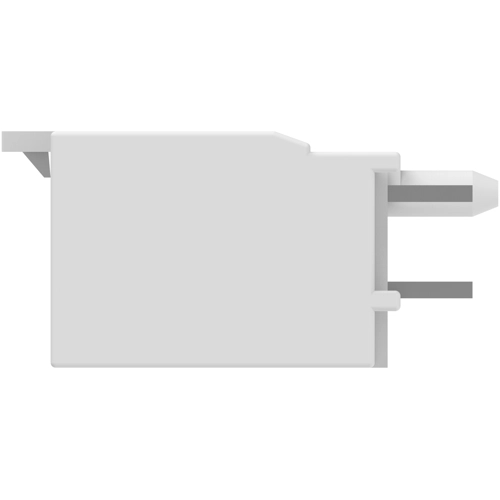

1-1971818-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8088 € *
Available: 0 pcs.
Available in 5 Days: 1,080 pcs.
Leadtime: 21 Weeks **
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.6422 €
50 pcs.
1.4875 €
100 pcs.
1.3328 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-1971818-1, TE Connectivity

Wire-to-Board, Printed Circuit Board, Standard, Vertical, 11 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: 6/6 Nylon GF, Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 11
  • Operating Temperature Range: -40 – 120 °C [-40 – 248 °F]
  • Rated current: 2 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Version Stiftleiste
Contact type Stift
Pin number 11-polig
Grid 2.5 mm
Connection Leiterplattenanschluss
Orientation gerade
Type of locking Ja
contact surface verzinnt
Connection plating verzinnt
Rated voltage 150 V
Rated current 2 A
Additional parts bestückt
Number of rows 1
Breakable No
Colour natur
Logistics
Country of origin IN
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
