1-1971818-2 | TE Connectivity

Pin header, 12 pole, pitch 2.5 mm, straight, natural, 1-1971818-2

Order No.: 35P4106
EAN: 4099889932454
MPN:
1-1971818-2

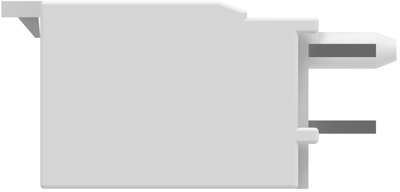

1-1971818-2 TE Connectivity PCB Connection Systems Image 1

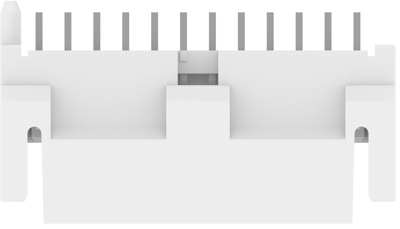

1-1971818-2 TE Connectivity PCB Connection Systems Image 2

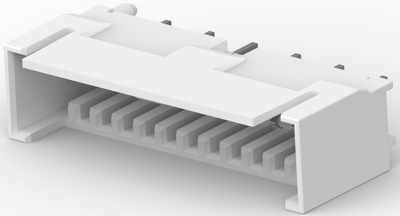

1-1971818-2 TE Connectivity PCB Connection Systems Image 3

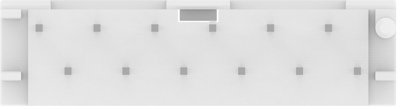

1-1971818-2 TE Connectivity PCB Connection Systems Image 4

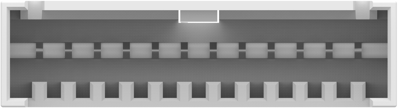

1-1971818-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9873 € *
Available: 0 pcs.
Available in 5 Days: 1,243 pcs.
Leadtime: 22 Weeks **
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9873 €
10 pcs.
1.8088 €
50 pcs.
1.6303 €
100 pcs.
1.4637 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-1971818-2, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 12 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 12
  • Operating Temperature Range: -40 – 120 °C [-40 – 248 °F]
  • Rated current: 6 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version Stiftleiste
Contact type Stift
Pin number 12-polig
Grid 2.5 mm
Connection Leiterplattenanschluss
Orientation gerade
Type of locking Ja
contact surface verzinnt
Connection plating verzinnt
Rated voltage 150 V
Rated current 6 A
Additional parts bestückt
Number of rows 1
Breakable No
Colour natur
Logistics
Country of origin IN
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
