1-1971875-4 | TE Connectivity

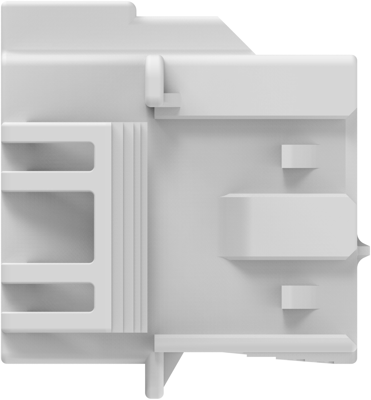

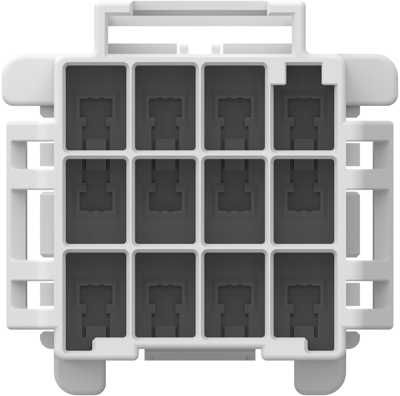

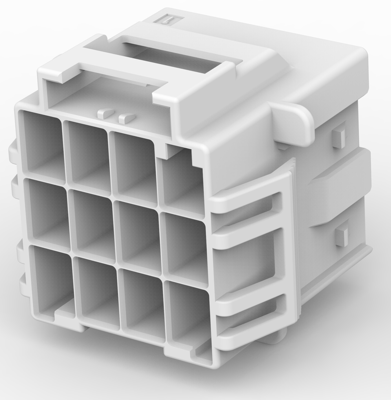

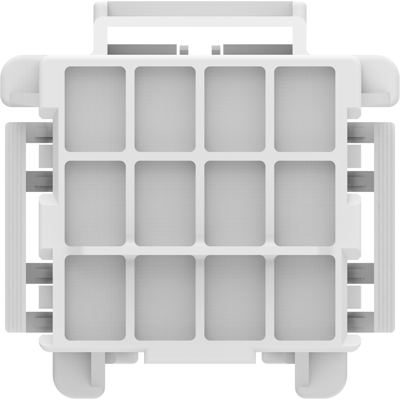

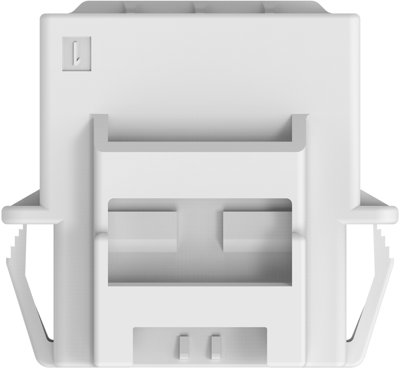

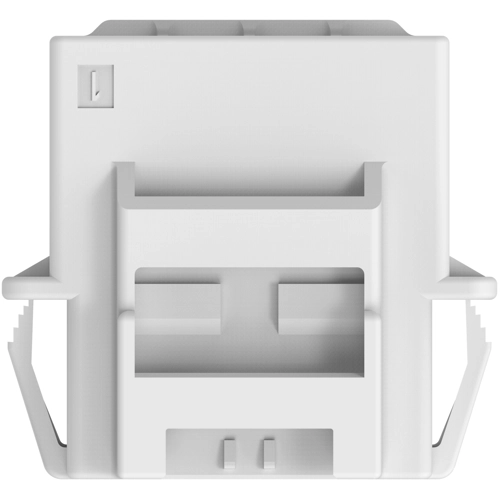

Socket housing, 12 pole, pitch 6 mm, straight, natural, 1-1971875-4
Unit Price (€ / pc.)
0.9163 € *
Available: 0 pcs.
Available in 5 Days: 20,735 pcs.
Leadtime: 15 Weeks **
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.8330 €
50 pcs.
0.7497 €
100 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale
Receptacle housing, front panel mount, triple-row.
Housing lock CPA, flame retardant to UL 94 V-0, for applications with higher current and signal levels, increased functional safety by means of 3 types of locking mechanism, snap-lock (with acoustic feedback when snapped in securely, side fins around the snap-lock elements to prevent pinching of the wires), optional housing lock (CPA) and optional contact lock (TPA), 6.0 mm grid, single/double row or matrix. Rated voltage: 600 V AC/DC. Rated current: max. 20 A. Housing material: PBT, UL 94 V-0. Contacts: tinned copper alloy. Operating temperatures: - 55 to +105 °C. Certifications: cURus.
Technical attributes (type, dimensions (A,B,C)): 1-1971875-4, 12-pole, 27.7 mm, 33.5 mm, 25.3 mm
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 3 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | unbestückt | |
| Brechbar | No | |
| Farbe | natur | |
| Kontaktart | Tab | |
| Nennspannung | 600 V | |
| Orientierung | gerade | |
| Polzahl | 12-polig | |
| Rastermaß | 6 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
