1-2103396-5 | TE Connectivity

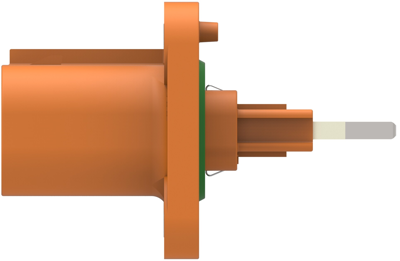

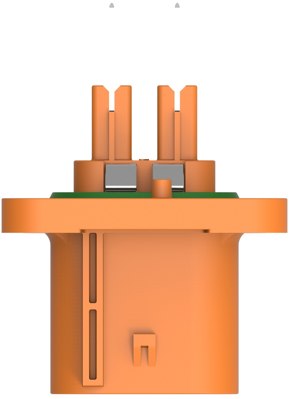

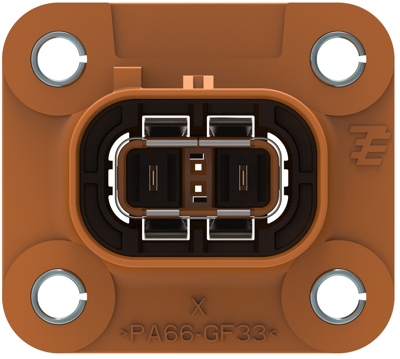

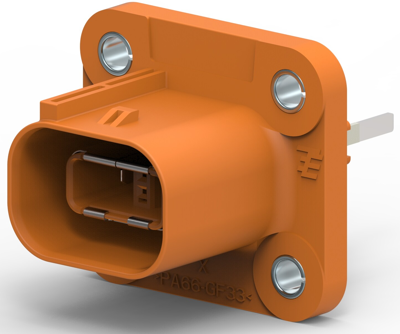

Connector, 4 pole, straight, orange, 1-2103396-5
Unit Price (€ / pc.)
19.6588 € *
Available: 0 pcs.
Available in 5 Days: 703 pcs.
Leadtime: 18 Weeks **
Total Price:
19.66 € *
Price list
Quantity
Price per unit*
1 pcs.
19.6588 €
10 pcs.
18.0880 €
25 pcs.
16.2792 €
50 pcs.
14.6489 €
*incl. VAT plus shipping costs
**Subject to prior sale
Header assembly, 1-2103396-5, TE Connectivity
The 1-2103396-5 includes a discrete header design unique to the industry that improves packaging and manufacturing efficiency with a two-stage floating latch. This product is finger-proof and designed for great flexibility, hybrid and electric vehicle device applications.
Applications
- DC/DC converter
- On-board charger
- Electric heater
- Electric climate compressor
- High voltage power distribution
Technical specifications
| Connection | Press-fit | |
| Number of rows | 2 | |
| Version | Steckverbinder | |
| Additional parts | bestückt | |
| Colour | orange | |
| Contact type | Tab | |
| contact surface | versilbert | |
| Rated voltage | 750 V | |
| Orientation | gerade | |
| Pin number | 4-polig |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
