1-2106003-4 | TE Connectivity
Connector, 4 pole, pitch 0.16 mm, straight, natural, 1-2106003-4
Order No.: 71P1209
EAN: 4099891718596
MPN:
1-2106003-4
Unit Price (€ / pc.)
0.7735 € *
Available: 0 pcs.
Available in 5 Days: 10,800 pcs.
Leadtime: 13 Weeks **
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
150 pcs.
0.7735 €
600 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale

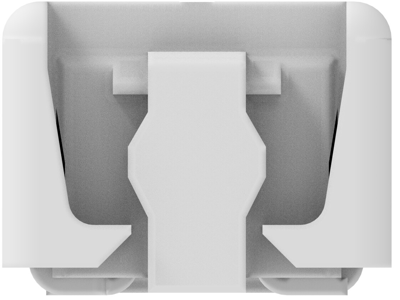

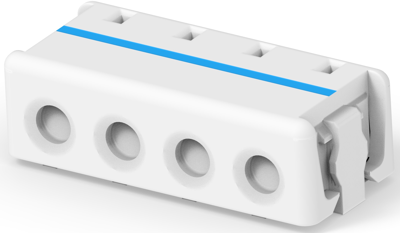

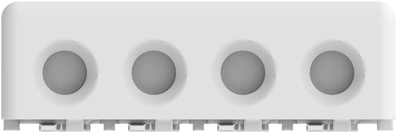

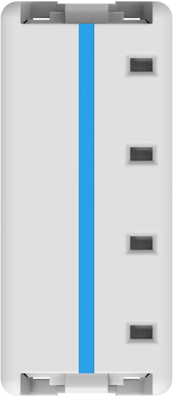

Connector assembly, 1-2106003-4, TE Connectivity
The 1-2106003-4 is designed for quick, tool-less termination of discrete solid and stranded wire leads to metal clad boards used in LED applications and FR4 boards used in thru-hole non-LED lighting applications. Integral cover provides wire entry location and when fully seated wire leads are secured in dual IDC slots ensures electrical connections.
Features
- Insulation displacement eliminates the need to pre-strip wire insulation prior to “tool-less” termination
- Integral cover provides a robust, mechanical strain relieved connection in high vibration applications
- Wire placement viewing window and wire gauge color coded housings assist in error free assembly
Applications
- LED lighting
- HVAC controls
- Fire and Security controls
- Household Appliances
- Power Tools
Technical specifications
| Connection | SMD | |
| Number of rows | 1 | |
| Version | connector | |
| Additional parts | equipped | |
| Colour | natural | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 7.5 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 0.16 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
