1-2198346-7 | TE Connectivity

Cage with integrated plug, 320 pole, pitch 0.8 mm, angled, 1-2198346-7

Order No.: 71P1363
EAN: 4099891633233
MPN:
1-2198346-7

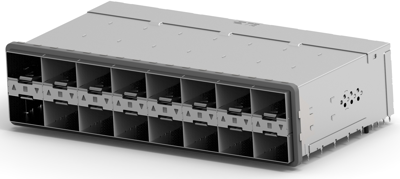

1-2198346-7 TE Connectivity PCB Connection Systems Image 1

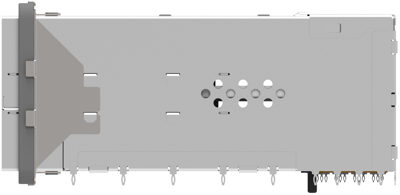

1-2198346-7 TE Connectivity PCB Connection Systems Image 2

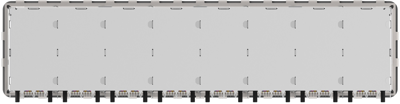

1-2198346-7 TE Connectivity PCB Connection Systems Image 3

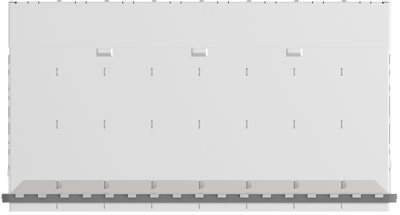

1-2198346-7 TE Connectivity PCB Connection Systems Image 4

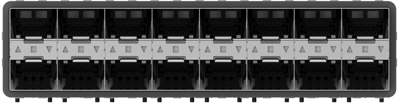

1-2198346-7 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
180.4873 € *
Available: 0 pcs.
Available in 5 Days: 24 pcs.
Leadtime: 17 Weeks **
Total Price:
360.97 € *
Price list
Quantity
Price per unit*
2 pcs.
180.4873 €
3 pcs.
177.1315 €
*incl. VAT plus shipping costs
**Subject to prior sale

Surface-Mount connector, 1-2198346-7, TE Connectivity

The 1-2198346-7 is a single-channel I/O connector, establishing a progressive path to higher speeds-an upgradeability that can result in longterm cost savings as this would eliminate the need to fully redesign for higher performance. This product has coupled, narrow-edged, blanked- and formed-contact beam geometry and insert molding for superior signal integrity, mechanical and electrical performance.

Features

  • Surface-mount connector design for single high 1xN cages
  • Heat sinks, LEDs and plating choices

Applications

  • Telecommunication
  • Data center
  • Medical
  • Networking
  • Test and Measurement Equipment
Technical specifications
Anschluss Press-fit
Anzahl der Reihen 2
Ausführung Käfig mit integriertem Stecker
Bestückung bestückt
Kontaktart Buchse
Kontaktoberfläche vergoldet
Orientierung abgewinkelt
Polzahl 320-polig
Rastermaß 0.8 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
