1-2204801-8 | TE Connectivity

Pin header, 4 pole, pitch 3 mm, straight, black, 1-2204801-8

Order No.: 71P1365
EAN: 4099891718756
MPN:
1-2204801-8
Series: Micro

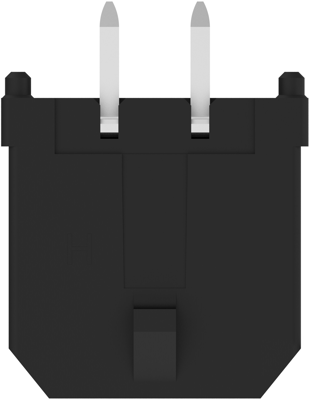

1-2204801-8 TE Connectivity PCB Connection Systems Image 1

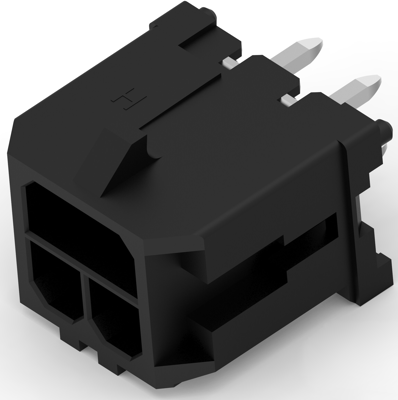

1-2204801-8 TE Connectivity PCB Connection Systems Image 2

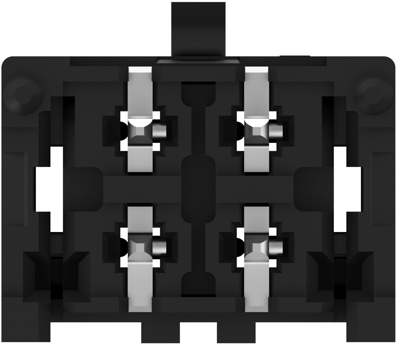

1-2204801-8 TE Connectivity PCB Connection Systems Image 3

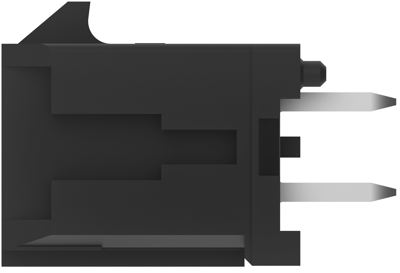

1-2204801-8 TE Connectivity PCB Connection Systems Image 4

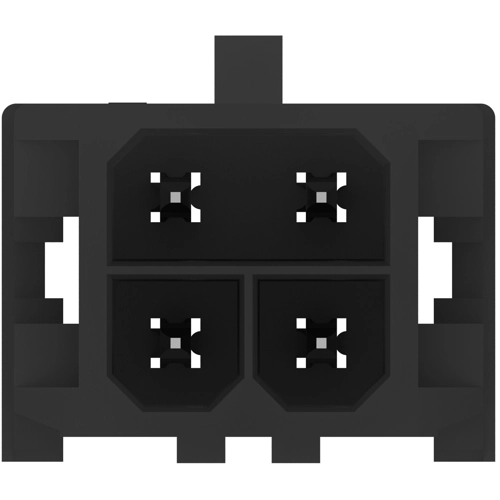

1-2204801-8 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8326 € *
Available: 0 pcs.
Available in 5 Days: 16,480 pcs.
Leadtime: 16 Weeks **
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
10 pcs.
1.6660 €
50 pcs.
1.4994 €
100 pcs.
1.3566 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pin header, 1-2204801-8, TE Connectivity

The 1-2204801-8 is a wire-to-board power that can provide a high current up to 12.5A per pin in the common industry footprint of 3.0mm. This product is useful for servers, switches, storage devices and testing machines. Perform reliably in harsh environments with maximum operating temperature of 105°C.

Features

  • Common industry footprint allows for easy upgrades to existing designs
  • Easy assembly with virtually fool-proof mating features
  • Made with halogen-free material
  • Low contact resistance of 5mΩ max provides lower temperature rise and lower power loss

Applications

  • Power supplies and distribution
  • Gaming Machines
  • Business retail equipment (BRE)
  • Security Systems
  • Measurement Equipment
Technical specifications
Connection Lötanschluss
Number of rows 2
Version Stiftleiste
Additional parts bestückt
Colour schwarz
Contact type Stift
contact surface verzinnt
Rated voltage 600 V
Rated current 12.5 A
Orientation gerade
Pin number 4-polig
Grid 3 mm
Type of locking Ja
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
