1-2291727-1 | TE Connectivity

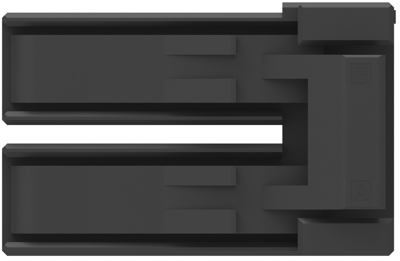

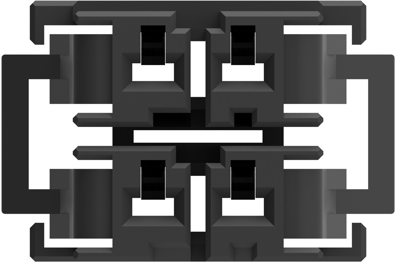

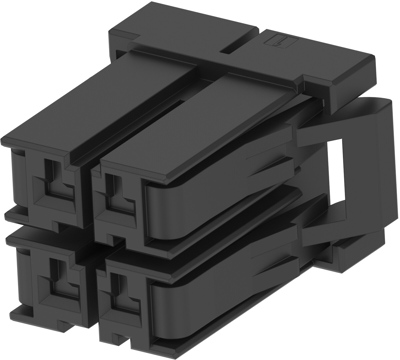

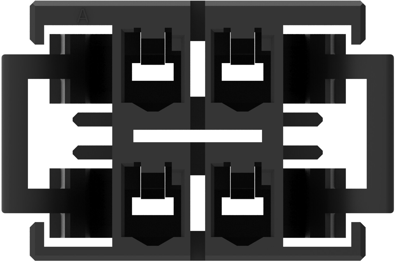

Socket housing, 4 pole, pitch 5.08 mm, straight, black, 1-2291727-1
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Available in 5 Days: 3,700 pcs.
Leadtime: 27 Weeks **
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4637 €
50 pcs.
1.3090 €
100 pcs.
1.1781 €
*incl. VAT plus shipping costs
**Subject to prior sale
Receptacle housing, 1-2291727-1, TE Connectivity
Housing, Receptacle, Wire-to-Board, 4 Position, 5.08 mm Centerline, Crimp, 2 Row, Black, Mating retention, Wire & Cable.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | Buchsengehäuse | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 600 V | |
| Rated current | 15 A | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Grid | 5.08 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
