1-2299959-1 | TE Connectivity

Socket housing, 2 pole, pitch 2.5 mm, straight, yellow, 1-2299959-1

Order No.: 71P1491
EAN: 4099891719067
MPN:
1-2299959-1
Series: Thermocouple

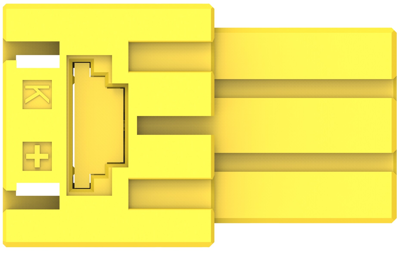

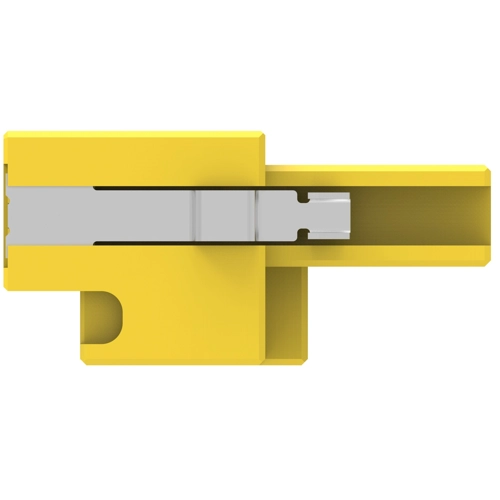

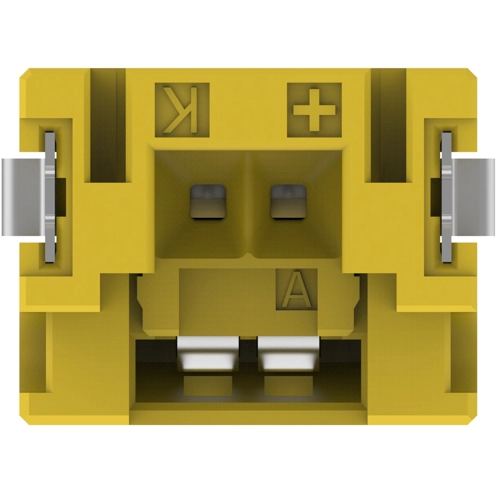

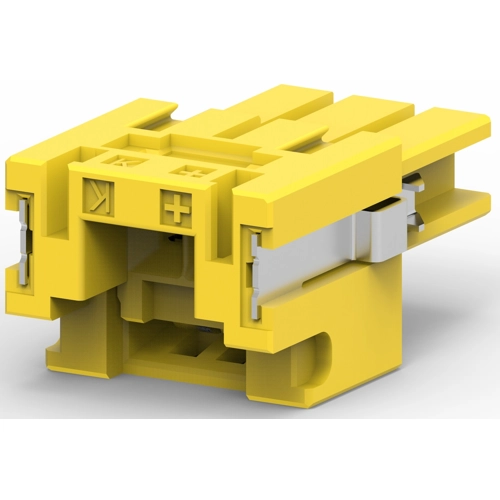

1-2299959-1 TE Connectivity PCB Connection Systems Image 1

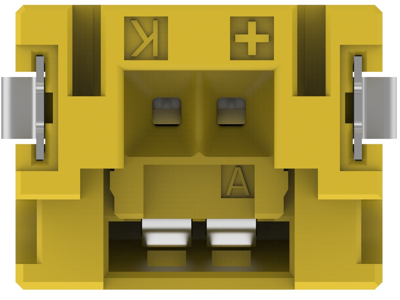

1-2299959-1 TE Connectivity PCB Connection Systems Image 2

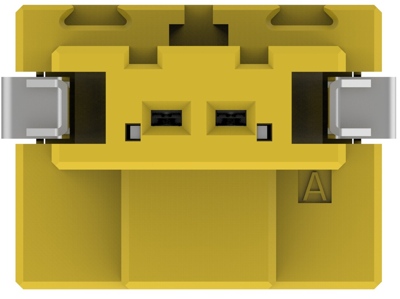

1-2299959-1 TE Connectivity PCB Connection Systems Image 3

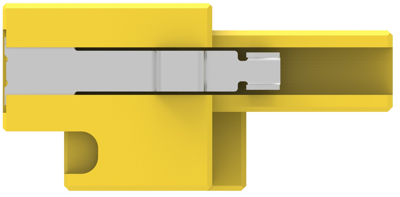

1-2299959-1 TE Connectivity PCB Connection Systems Image 4

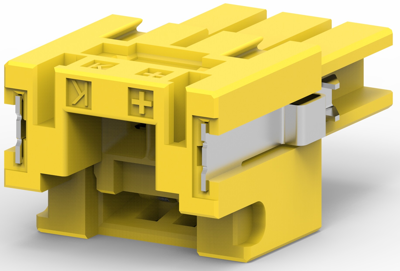

1-2299959-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
29.5358 € *
Available: 0 pcs.
Available in 5 Days: 7,002 pcs.
Leadtime: 32 Weeks **
Total Price:
29.54 € *
Price list
Quantity
Price per unit*
1 pcs.
29.5358 €
10 pcs.
27.1677 €
25 pcs.
24.4545 €
50 pcs.
22.0150 €
*incl. VAT plus shipping costs
**Subject to prior sale

Thermocouple connector, 1-2299959-1, TE Connectivity

The 1-2299959-1 is a thermocouple connector that enables easy connection with thermocouple wire. This unique spring terminal concept enables outstanding connectivity compared with the traditional screw type termination. The “push-on lock concept” allows easy mating while the unique shape of the metal-locking mechanism prevents unintentional unmating. Better mating reliability because of the metal lock concept which prevents unintentional un-mating and is supported by an audible click when mated.

Features

  • Touch Proof design supports IP20 degree of protection
  • Supports Free-hanging and Panel Mount solution
  • Space saving compact design
  • Spring Clamp concept ensures outstanding connectivity /manufacturability

Applications

  • Semiconductor Machinery
  • Injection Molding Machine
  • Machine Tool Equipment
Technical specifications
Anschluss Federklemmanschluss
Anzahl der Reihen 1
Ausführung Buchsengehäuse
Bestückung bestückt
Farbe gelb
Kontaktart Buchse
Orientierung gerade
Polzahl 2-polig
Rastermaß 2.5 mm
Verriegelung Ja
Logistics
Ursprungsland JP
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
