1-2300178-3 | TE Connectivity

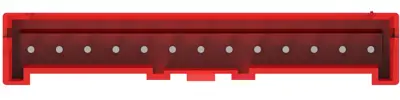

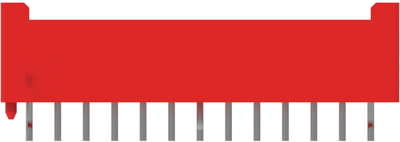

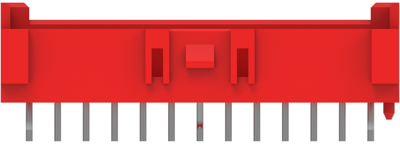

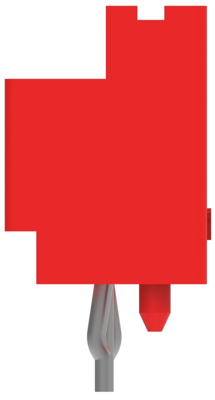

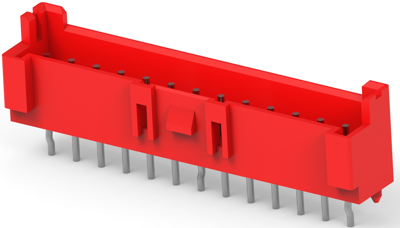

Pin header, 13 pole, pitch 2.5 mm, straight, red, 1-2300178-3
Unit Price (€ / pc.)
0.6188 € *
Available: 0 pcs.
Available in 5 Days: 4,800 pcs.
Leadtime: 18 Weeks **
Total Price:
216.58 € *
Price list
Quantity
Price per unit*
350 pcs.
0.6188 €
750 pcs.
0.5950 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power connector, 1-2300178-3, TE Connectivity
The 1-2300178-3 is a economy power connector that provides a comprehensive connectivity solution with vertical and Right angle headers, optional TPA retainers, wire-to-wire and wire-toboard options and a range of resin materials that include types meeting. This product has asymmetrical terminals that can only be loaded into housing in one way.
Features
- Housing locking latch
- Polarization tabs
- Standard or low insertion force (LIF) terminals
- Anti-fretting contact lubricant
Technical specifications
| Connection | Lötanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | rot | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 4.2 A | |
| Orientation | gerade | |
| Pin number | 13-polig | |
| Grid | 2.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
