1-2307817-0 | TE Connectivity

Socket header, 10 pole, pitch 2 mm, straight, black, 1-2307817-0

Order No.: 71P1509
EAN: 4099891719098
MPN:
1-2307817-0
Series: 3SBC
TE Connectivity

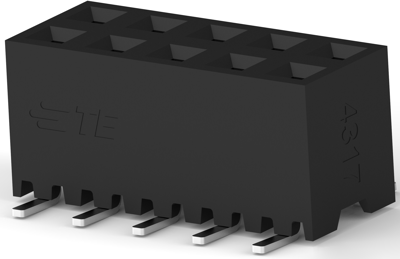

1-2307817-0 TE Connectivity PCB Connection Systems Image 1

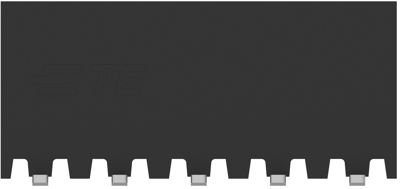

1-2307817-0 TE Connectivity PCB Connection Systems Image 2

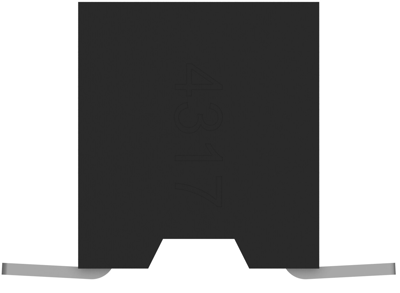

1-2307817-0 TE Connectivity PCB Connection Systems Image 3

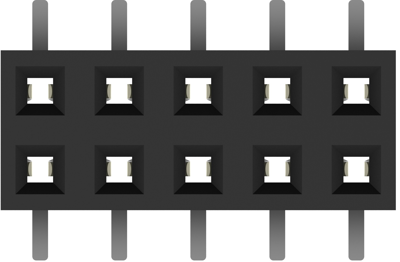

1-2307817-0 TE Connectivity PCB Connection Systems Image 4

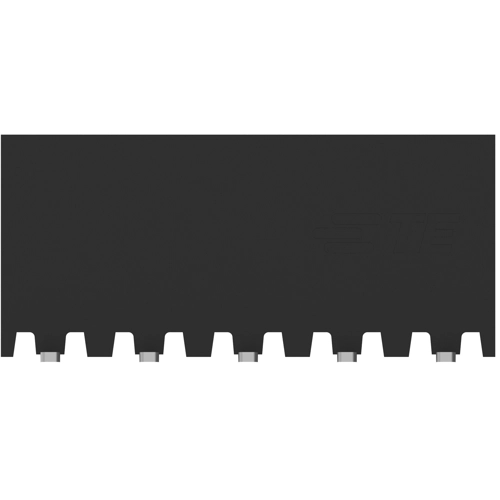

1-2307817-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Print
Key Specification:
Version Buchsenleiste
Contact type Buchse
Pin number 10-polig
Grid 2 mm
Connection SMD

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.4756 € *
Available: 0 pcs.
Available in 5 Days: 700 pcs.
Leadtime: 19 Weeks **
Total Price:
1,032.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
700 pcs.
1.4756 €
Description
Technical specifications
Download
Logistics
Compliance

Socket header, 1-2307817-0, TE Connectivity

The 1-2307817-0 is a PCB Mount receptacle, housed in a high-temperature-resistant liquid crystal polymer (LCP) plastic. The receptacle assembly employ phosphor bronze contact with dual cantilever beams and built-in anti-overstress. This feature provides superior electrical performance as well as excellent solderability.

Applications

  • Servo Drives
  • Industrial Controls
  • Material Handling
  • Instrumentation and Test Equipment
  • Building Automation
  • PLC
Technical specifications
Connection SMD
Connection plating verzinnt
Number of rows 2
Version Buchsenleiste
Additional parts bestückt
Colour schwarz
Contact type Buchse
contact surface vergoldet
Rated voltage 125 V
Rated current 2 A
Orientation gerade
Pin number 10-polig
Grid 2 mm
Type of locking Ja
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
