1-2316102-5 | TE Connectivity

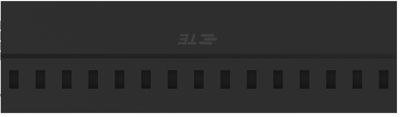

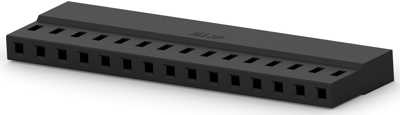

Socket housing, 15 pole, pitch 2 mm, straight, black, 1-2316102-5
Unit Price (€ / pc.)
0.8925 € *
Available: 0 pcs.
Available in 5 Days: 5,600 pcs.
Leadtime: 24 Weeks **
Total Price:
0.89 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8925 €
10 pcs.
0.8092 €
50 pcs.
0.7259 €
100 pcs.
0.6545 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket header, 1-2316102-5, TE Connectivity
The 1-2316102-5 is a PCB Mount receptacle, housed in a high-temperature-resistant liquid crystal polymer (LCP) plastic. The receptacle assembly employ phosphor bronze contact with dual cantilever beams and built-in anti-overstress. This feature provides superior electrical performance as well as excellent solderability.
Applications
- Servo Drives
- Industrial Controls
- Material Handling
- Instrumentation and Test Equipment
- Building Automation
- PLC
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Buchsengehäuse | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 125 V | |
| Rated current | 2 A | |
| Orientation | gerade | |
| Pin number | 15-polig | |
| Grid | 2 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
