1-2343522-9 | TE Connectivity

Cage with integrated plug, 20 pole, pitch 0.6 mm, angled, 1-2343522-9

Order No.: 71P1666
EAN: 4099891633295
MPN:
1-2343522-9
Series: SFP56
TE Connectivity

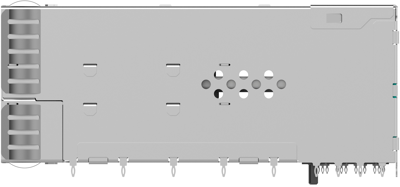

1-2343522-9 TE Connectivity PCB Connection Systems Image 1

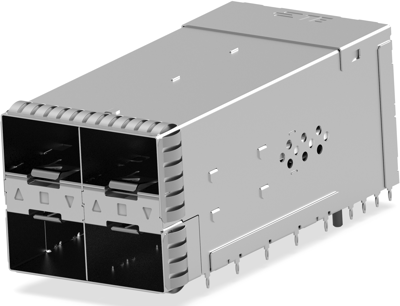

1-2343522-9 TE Connectivity PCB Connection Systems Image 2

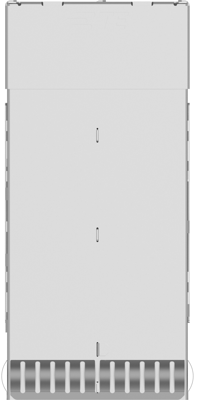

1-2343522-9 TE Connectivity PCB Connection Systems Image 3

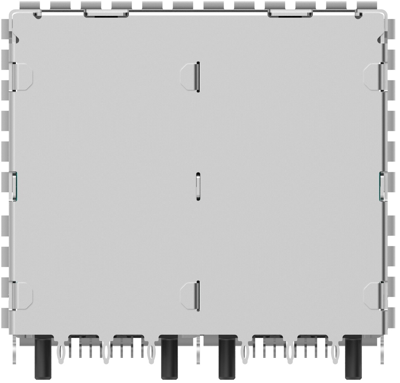

1-2343522-9 TE Connectivity PCB Connection Systems Image 4

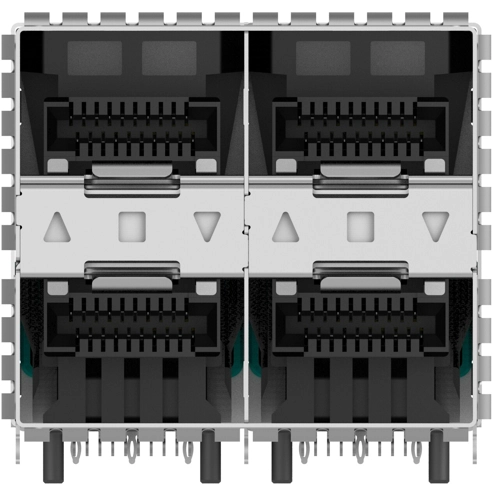

1-2343522-9 TE Connectivity PCB Connection Systems Image 5
Image may differ
Print
Key Specification:
Version cage with integrated plug
Contact type socket
Pin number 20 pole
Grid 0.6 mm
Connection press-fit

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
45.8745 € *
Available: 0 pcs.
Available in 5 Days: 45 pcs.
Leadtime: 13 Weeks **
Add to Cart
Total Price:
45.87 € *
Price list
Quantity
Price per unit*
2 pcs.
45.8745 €
10 pcs.
43.2089 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance

Cage assembly, 1-2343522-9, TE Connectivity

SFP, Cage assembly with integrated connector, Data rate (max) 56 Gb/s, Internal/External EMI springs.
Technical specifications
Connection press-fit
Number of rows 2
Version cage with integrated plug
Additional parts equipped
Contact type socket
contact surface gold-plated
Orientation angled
Pin number 20 pole
Grid 0.6 mm
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
