1-282002-4 | TE Connectivity

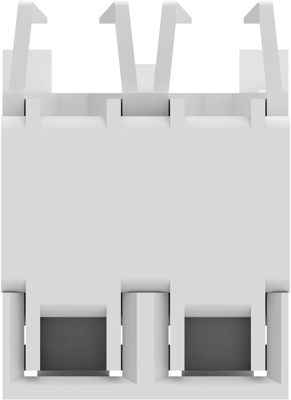

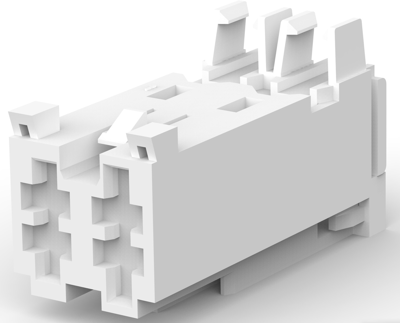

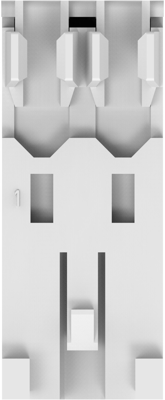

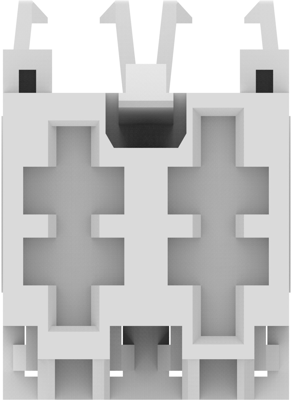

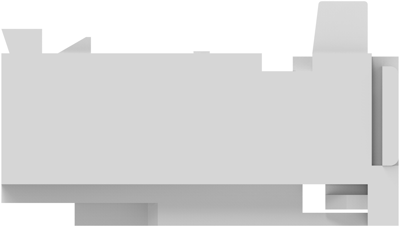

Socket header, 2 pole, pitch 5 mm, angled, white, 1-282002-4
Order No.: 35P3996
EAN: 4099889932133
MPN:
1-282002-4
Unit Price (€ / pc.)
0.2309 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
PCB Connection System, 1-282002-4, TE Connectivity
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: PA 6.6
- Housing Color: blue
- Number of positions: 2
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Rated current: 16 A
- Centerline (Pitch): 5 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Brechbar | No | |
| Farbe | weiß | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 150 V | |
| Nennstrom | 16 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 2-polig | |
| Rastermaß | 5 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85369001 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
