1-2842131-0 | TE Connectivity

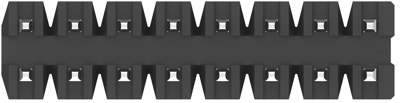

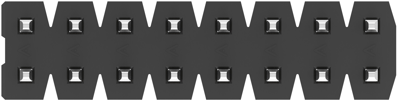

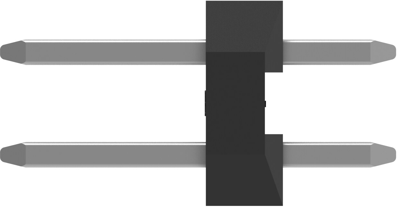

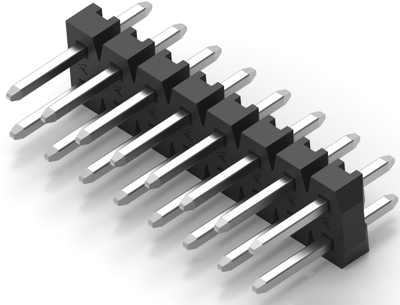

Pin header, 20 pole, pitch 2 mm, straight, black, 1-2842131-0
Unit Price (€ / pc.)
3.4272 € *
Available: 0 pcs.
Available in 5 Days: 4,146 pcs.
Leadtime: 20 Weeks **
Total Price:
3.43 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4272 €
10 pcs.
3.1535 €
50 pcs.
2.8322 €
100 pcs.
2.5466 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin header, 1-2842131-0, TE Connectivity
The 1-2842131-0 is a PCB Mount header, ideal for mobile and portable personal computers and disk drive applications.
Technical specifications
| Connection | Lötanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated voltage | 125 V | |
| Rated current | 2 A | |
| Orientation | gerade | |
| Pin number | 20-polig | |
| Grid | 2 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
