1-2842248-6 | TE Connectivity

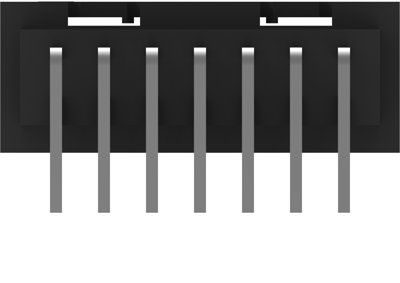

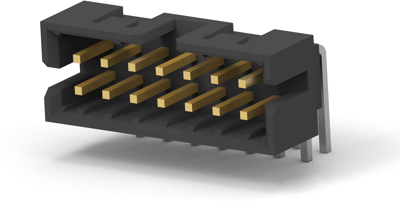

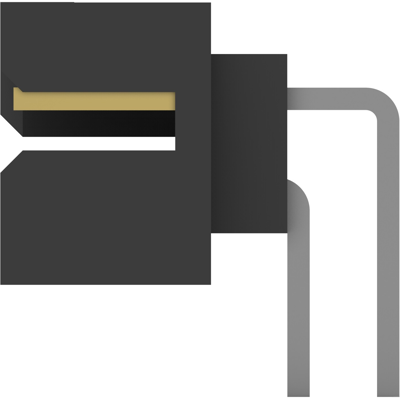

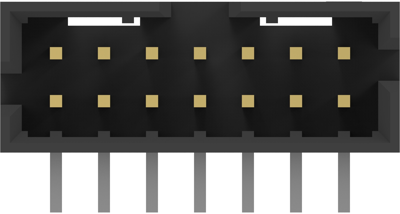

Pin header, 16 pole, pitch 2 mm, angled, black, 1-2842248-6
Order No.: 59F340
MPN:
1-2842248-6
Unit Price (€ / pc.)
2.6537 € *
Available: 0 pcs.
Available in 5 Days: 1,860 pcs.
Leadtime: 14 Weeks **
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6537 €
10 pcs.
2.4395 €
50 pcs.
2.2253 €
100 pcs.
1.9992 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connector, 1-2842248-6, TE Connectivity
PCB mount header, Right angle, Board-to-Board, 16 Positions, 2 mm centerline, Fully Shrouded, Gold (Au), Through Hole-Solder.
Technical specifications
| Connection | Lötanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated voltage | 125 V | |
| Rated current | 2 A | |
| Orientation | abgewinkelt | |
| Pin number | 16-polig | |
| Grid | 2 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
