1-647676-2 | TE Connectivity

Pin header, 12 pole, pitch 3.96 mm, angled, white, 1-647676-2

Order No.: 34P7140
EAN: 4099889913828
MPN:
1-647676-2
Series: Economy Power

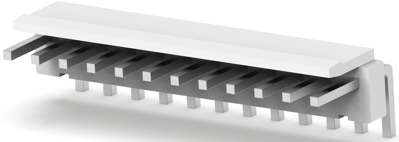

1-647676-2 TE Connectivity PCB Connection Systems Image 1

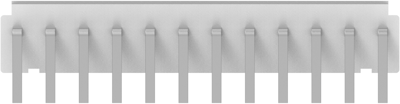

1-647676-2 TE Connectivity PCB Connection Systems Image 2

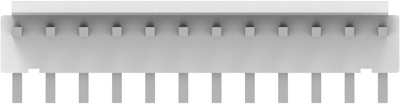

1-647676-2 TE Connectivity PCB Connection Systems Image 3

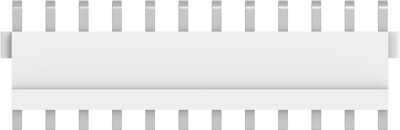

1-647676-2 TE Connectivity PCB Connection Systems Image 4

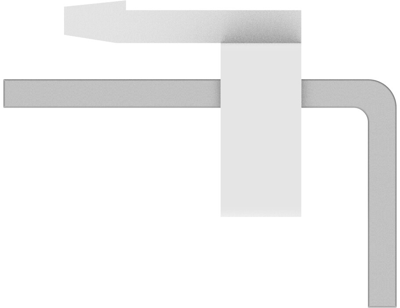

1-647676-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7616 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
1,142.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1500 pcs.
0.7616 €

PCB Connection System, 1-647676-2, TE Connectivity

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle,Vertical, 12 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon 66
  • Housing Color: white
  • Number of positions: 12
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 7.5 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection PCB connection
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Breakable No
Colour white
Contact type pin
contact surface tin-plated
Rated voltage 250 V
Rated current 7.5 A
Orientation angled
Pin number 12 pole
Grid 3.96 mm
Type of locking Yes
Logistics
Country of origin CZ
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
