1-770669-5 | TE Connectivity

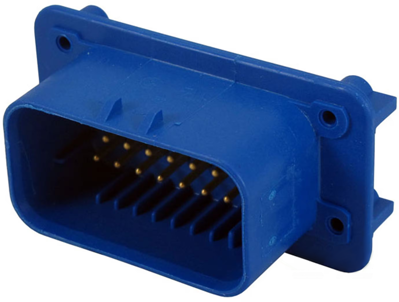

Pin header, 23 pole, pitch 4 mm, angled, blue, 1-770669-5
Unit Price (€ / pc.)
21.8127 € *
Available: 0 pcs.
Available in 5 Days: 323 pcs.
Leadtime: 16 Weeks **
Total Price:
21.81 € *
Price list
Quantity
Price per unit*
1 pcs.
21.8127 €
10 pcs.
20.0753 €
25 pcs.
18.0642 €
50 pcs.
16.2554 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Header, 1-770669-5, TE Connectivity
PCB Mount header, Right angle, Wire-to-Board, 23 Position, 4 mm Centerline, Fully shrouded, Gold, Through Hole-Solder, Sealable.
Features
- Secure positive contact seating through secondary contact locking and lanceless contacts
- Protect from dust, water, and overspray with up to IP6K9K rugged sealing capabilities
- Reduce tangling during storage and handling thanks to lanceless receptacle contacts
- Reduce wire strain
- Minimize mismating and misidentification with different connector colors and mechanical polarized keyings
Technical specifications
| Connection | Lötanschluss | |
| Number of rows | 3 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | blau | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated voltage | 250 V | |
| Rated current | 17 A | |
| Orientation | abgewinkelt | |
| Pin number | 23-polig | |
| Grid | 4 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
