1586861-8 | TE Connectivity

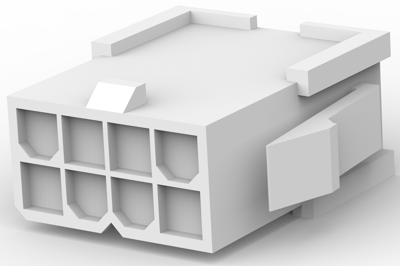

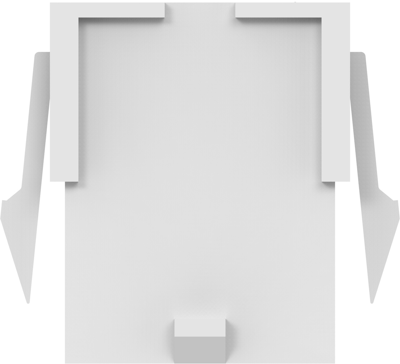

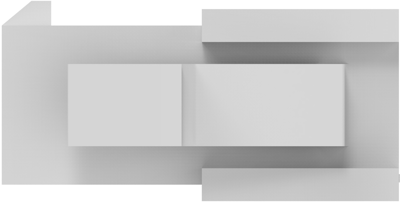

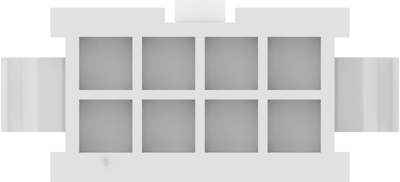

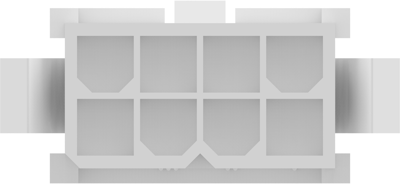

Plug housing, 8 pole, pitch 4.2 mm, straight, white, 1586861-8
Unit Price (€ / pc.)
0.3058 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 1586861-8, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Polyamide
- Housing Color: white
- Number of positions: 8
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Steckergehäuse | |
| Bestückung | unbestückt | |
| Brechbar | No | |
| Farbe | weiß | |
| Kontaktart | Stift | |
| Nennspannung | 600 V | |
| Orientierung | gerade | |
| Polzahl | 8-polig | |
| Rastermaß | 4.2 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
