1586862-2 | TE Connectivity

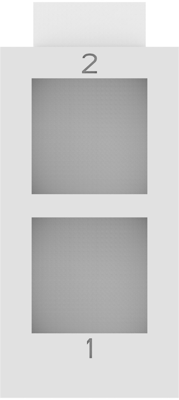

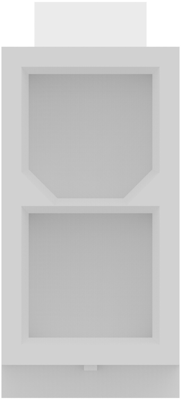

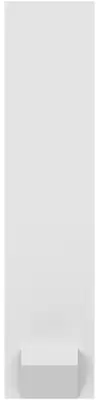

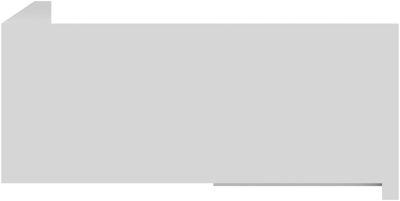

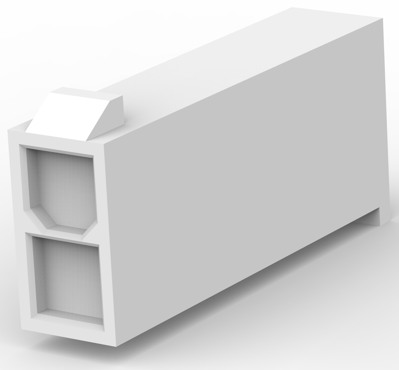

Plug housing, 2 pole, pitch 4.2 mm, straight, white, 1586862-2
Unit Price (€ / pc.)
0.1880 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
3,384.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
18000 pcs.
0.1880 €
PCB Connection System, 1586862-2, TE Connectivity
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyamide
- Housing Color: white
- Number of positions: 2
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | Steckergehäuse | |
| Additional parts | unbestückt | |
| Breakable | No | |
| Colour | weiß | |
| Contact type | Buchse | |
| Rated voltage | 600 V | |
| Orientation | gerade | |
| Pin number | 2-polig | |
| Grid | 4.2 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
