1586862-4 | TE Connectivity

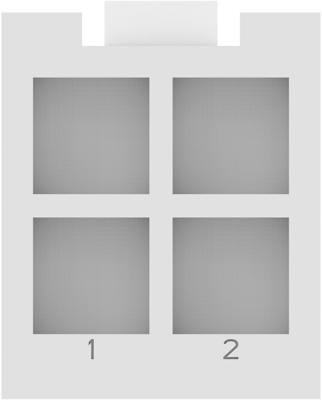

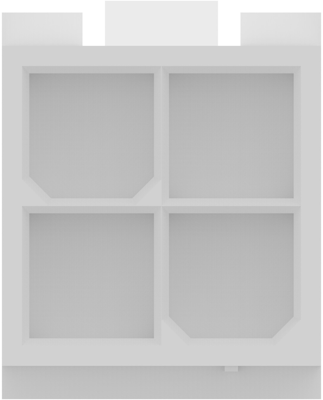

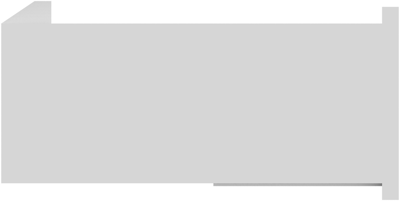

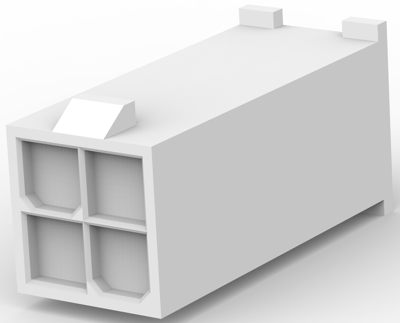

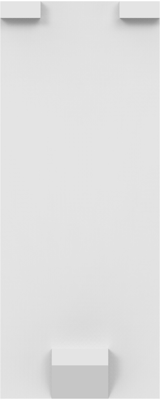

Plug housing, 4 pole, pitch 4.2 mm, straight, white, 1586862-4
Unit Price (€ / pc.)
0.2202 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 1586862-4, TE Connectivity
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyamide
- Housing Color: white
- Number of positions: 4
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
- Contact Layout: Matrix, Square Grid
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Breakable | No | |
| Colour | white | |
| Contact type | socket | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 4.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
