1734595-2 | TE Connectivity

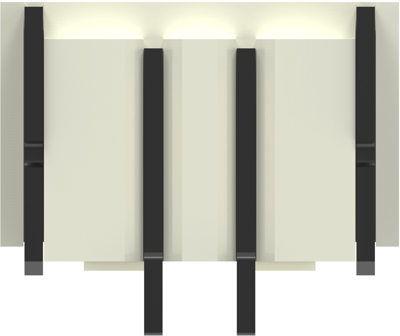

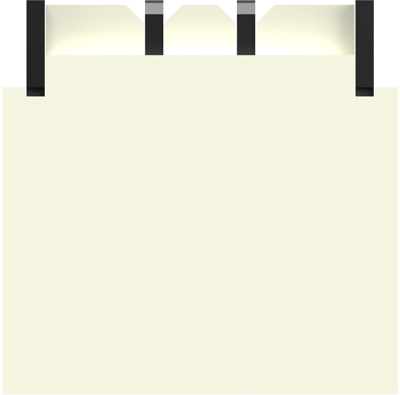

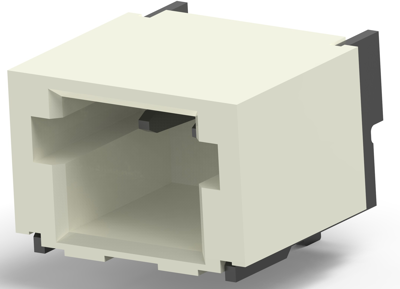

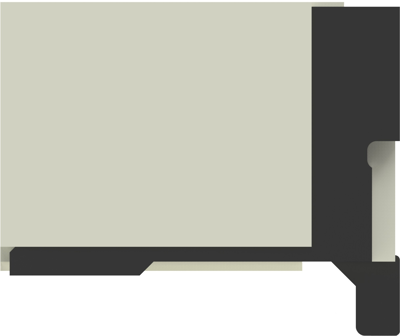

Pin header, 2 pole, pitch 1 mm, straight, ivory, 1734595-2
Order No.: 36P9899
EAN: 4099889950700
MPN:
1734595-2
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Available in 5 Days: 18,000 pcs.
Leadtime: 11 Weeks **
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.5712 €
2000 pcs.
0.5355 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1734595-2, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: High Temperature Thermoplastic
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 1 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | SMD | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | ivory | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 1 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
