1744037-6 | TE Connectivity

Pin header, 6 pole, pitch 5.08 mm, straight, natural, 1744037-6

Order No.: 34P7128
EAN: 4099889913736
MPN:
1744037-6
Series: Economy Power

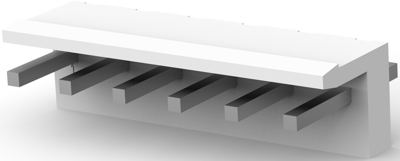

1744037-6 TE Connectivity PCB Connection Systems Image 1

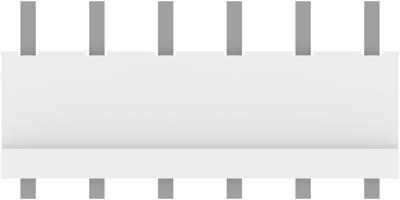

1744037-6 TE Connectivity PCB Connection Systems Image 2

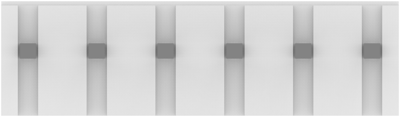

1744037-6 TE Connectivity PCB Connection Systems Image 3

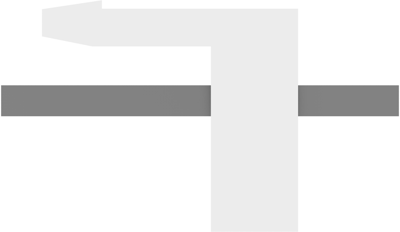

1744037-6 TE Connectivity PCB Connection Systems Image 4

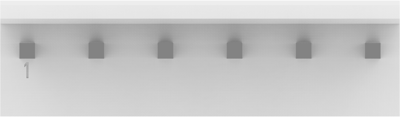

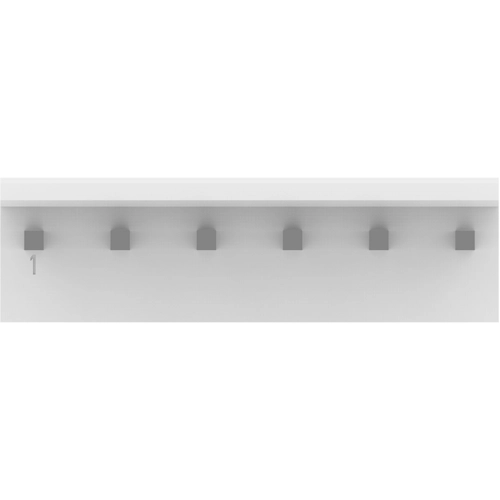

1744037-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2059 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
823.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4000 pcs.
0.2059 €

PCB Connection System, 1744037-6, TE Connectivity

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 8 A
  • Centerline (Pitch): 5.08 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version Stiftleiste
Contact type Stift
Pin number 6-polig
Grid 5.08 mm
Connection Leiterplattenanschluss
Orientation gerade
Type of locking Ja
contact surface verzinnt
Connection plating verzinnt
Rated voltage 250 V
Rated current 8 A
Additional parts bestückt
Number of rows 1
Breakable No
Colour natur
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
