1744048-3 | TE Connectivity

Pin header, 3 pole, pitch 5.08 mm, angled, natural, 1744048-3

Order No.: 34P7119
EAN: 4099889913668
MPN:
1744048-3
Series: Economy Power

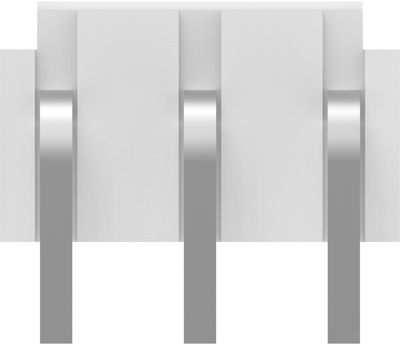

1744048-3 TE Connectivity PCB Connection Systems Image 1

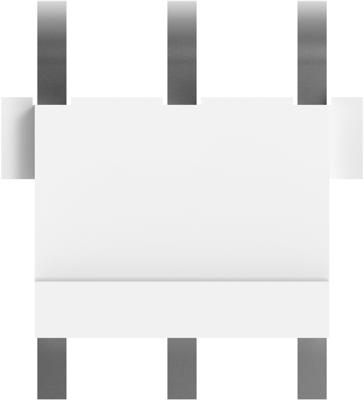

1744048-3 TE Connectivity PCB Connection Systems Image 2

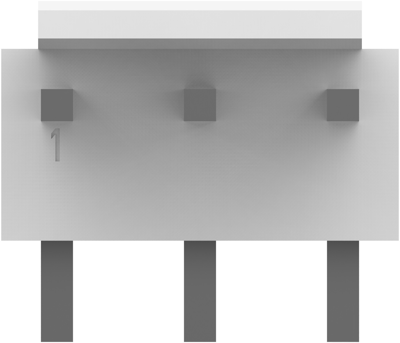

1744048-3 TE Connectivity PCB Connection Systems Image 3

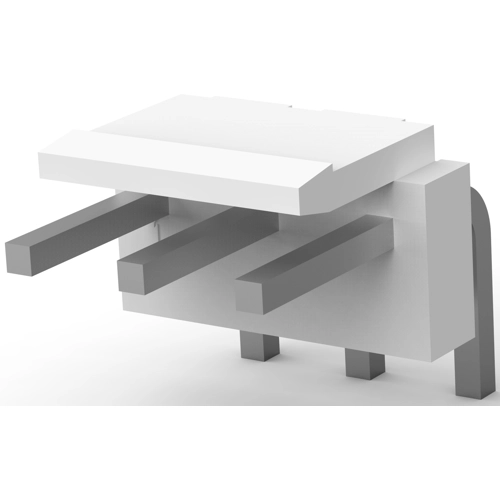

1744048-3 TE Connectivity PCB Connection Systems Image 4

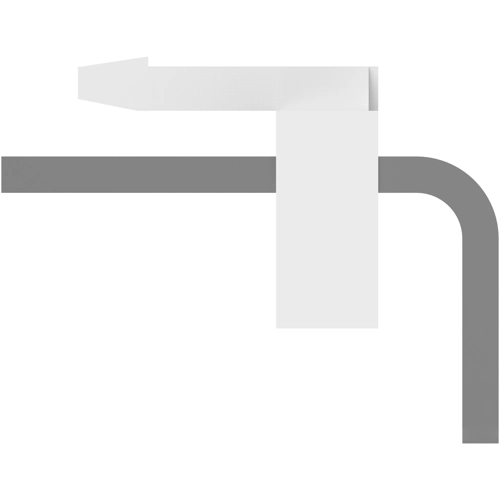

1744048-3 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2796 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
2,796.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10000 pcs.
0.2796 €

PCB Connection System, 1744048-3, TE Connectivity

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 3
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 8 A
  • Centerline (Pitch): 5.08 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 8 A
Orientierung abgewinkelt
Polzahl 3-polig
Rastermaß 5.08 mm
Verriegelung Ja
Logistics
Ursprungsland TH
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
