1744057-2 | TE Connectivity

Pin header, 2 pole, pitch 3.96 mm, straight, natural, 1744057-2

Order No.: 34P7145
EAN: 4099889913873
MPN:
1744057-2
Series: Economy Power

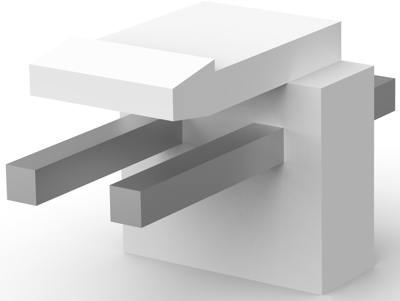

1744057-2 TE Connectivity PCB Connection Systems Image 1

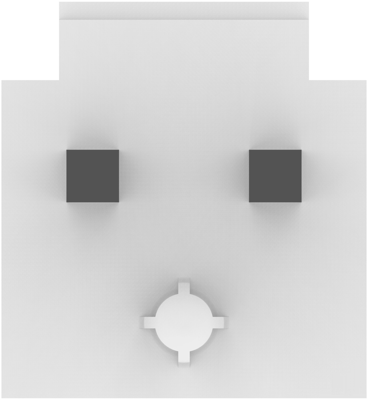

1744057-2 TE Connectivity PCB Connection Systems Image 2

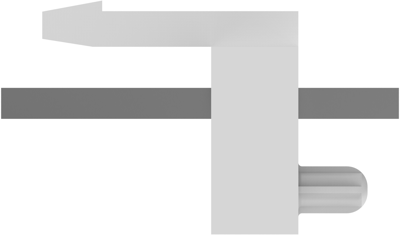

1744057-2 TE Connectivity PCB Connection Systems Image 3

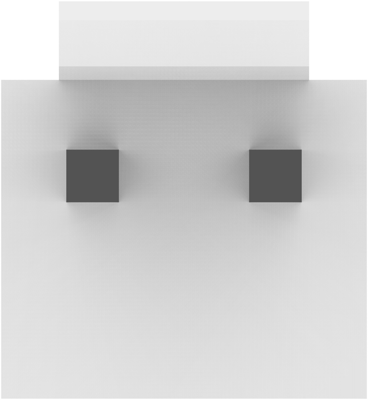

1744057-2 TE Connectivity PCB Connection Systems Image 4
1744057-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1476 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
2,508.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
17000 pcs.
0.1476 €

PCB Connection System, 1744057-2, TE Connectivity

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 8 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 8 A
Orientierung gerade
Polzahl 2-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland TH
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
