1744417-2 | TE Connectivity

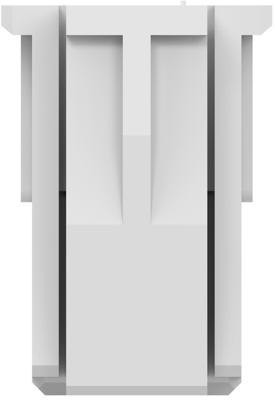

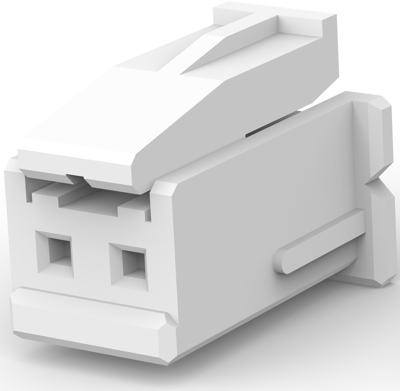

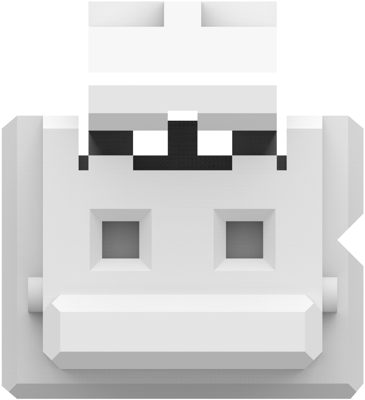

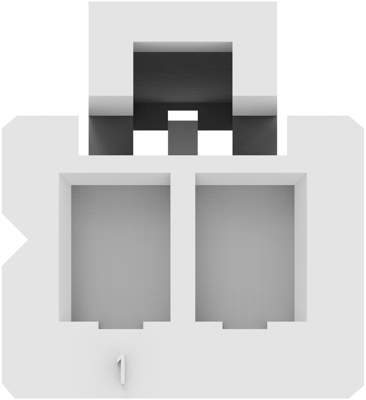

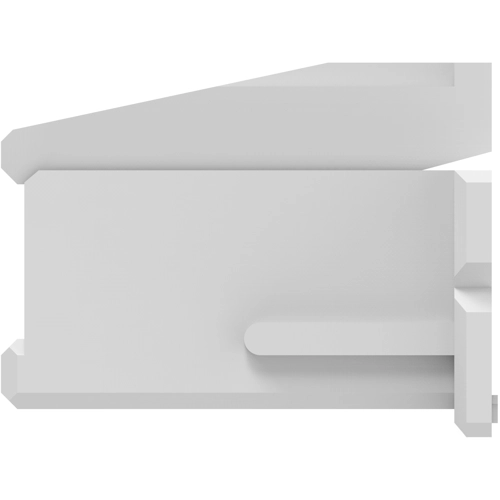

Socket housing, 2 pole, pitch 2.5 mm, straight, natural, 1744417-2
Unit Price (€ / pc.)
0.0559 € *
Available: 0 pcs.
Available in 5 Days: 4,697 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 1744417-2, TE Connectivity
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | unbestückt | |
| Brechbar | No | |
| Farbe | natur | |
| Kontaktart | Buchse | |
| Nennspannung | 250 V | |
| Orientierung | gerade | |
| Polzahl | 2-polig | |
| Rastermaß | 2.5 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85389011 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
