1744417-4 | TE Connectivity

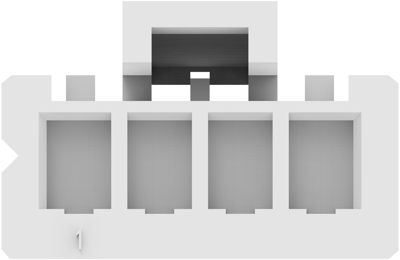

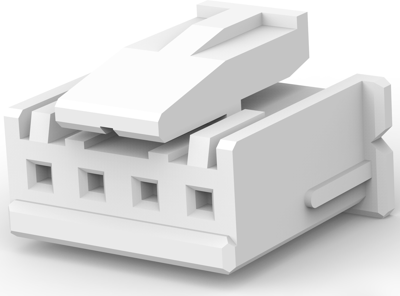

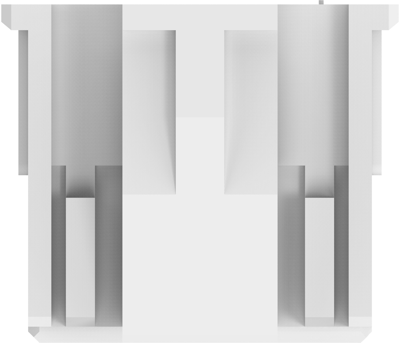

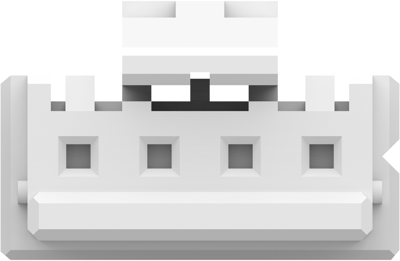

Socket housing, 4 pole, pitch 2.5 mm, straight, natural, 1744417-4
Unit Price (€ / pc.)
0.1380 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.14 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1380 €
50 pcs.
0.1249 €
100 pcs.
0.1131 €
500 pcs.
0.1012 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 1744417-4, TE Connectivity
Wire-to-Board, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Breakable | No | |
| Colour | natural | |
| Contact type | socket | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 2.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
