1744439-8 | TE Connectivity

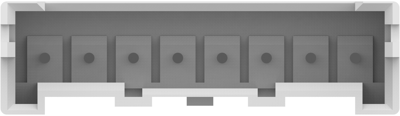

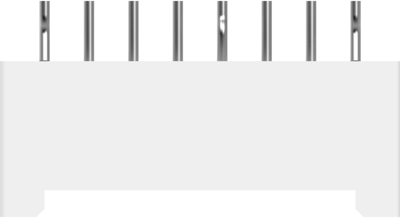

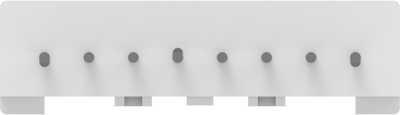

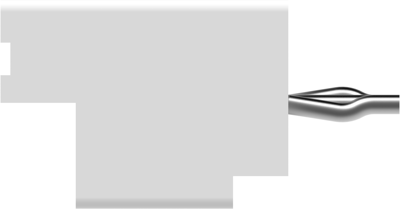

Pin header, 8 pole, pitch 2.5 mm, straight, natural, 1744439-8
Unit Price (€ / pc.)
0.5117 € *
Available: 0 pcs.
Available in 5 Days: 3,300 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 1744439-8, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 8
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 4.2 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Brechbar | No | |
| Farbe | natur | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 250 V | |
| Nennstrom | 4.2 A | |
| Orientierung | gerade | |
| Polzahl | 8-polig | |
| Rastermaß | 2.5 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
