1744439-9 | TE Connectivity

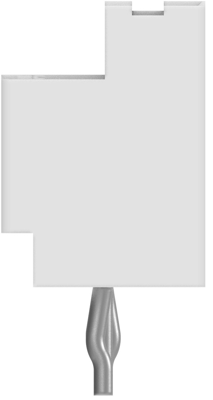

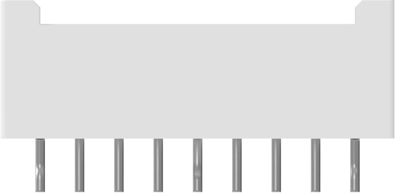

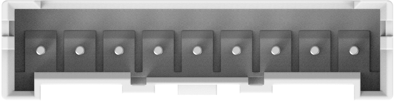

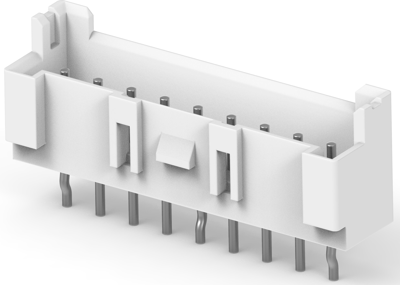

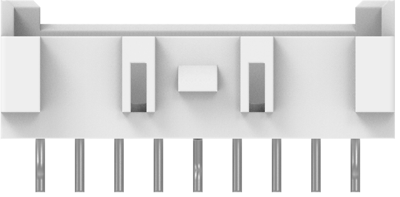

Pin header, 9 pole, pitch 2.5 mm, straight, natural, 1744439-9
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Available in 5 Days: 1,721 pcs.
Leadtime: 20 Weeks **
Power connector, 1744439-9, TE Connectivity
The 1744439-9 is a economy power connector that provides a comprehensive connectivity solution with vertical and Right angle headers, optional TPA retainers, wire-to-wire and wire-toboard options and a range of resin materials that include types meeting. This product has asymmetrical terminals that can only be loaded into housing in one way.
Features
- Housing locking latch
- Polarization tabs
- Standard or low insertion force (LIF) terminals
- Anti-fretting contact lubricant
Technical specifications
| Connection | Lötanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | natur | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 4.2 A | |
| Orientation | gerade | |
| Pin number | 9-polig | |
| Grid | 2.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
