1761987-9 | TE Connectivity

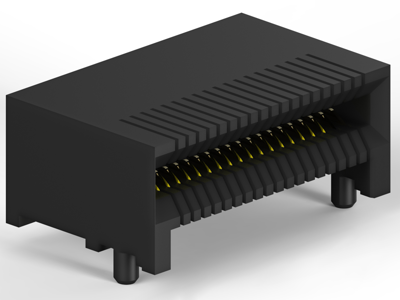

Connector, 38 pole, pitch 0.8 mm, angled, black, 1761987-9
Order No.: 37P1963
EAN: 4099889824261
MPN:
1761987-9
Unit Price (€ / pc.)
3.8437 € *
Available: 0 pcs.
Available in 5 Days: 1,200 pcs.
Leadtime: 6 Weeks **
Total Price:
3.84 € *
Price list
Quantity
Price per unit*
400 pcs.
3.8437 €
800 pcs.
3.7485 €
*incl. VAT plus shipping costs
**Subject to prior sale
QSFP/QSFP+/zQSFP+, 1761987-9, TE Connectivity
Form Factor: QSFP+, Pluggable I/O Product Type: Connector, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 38, Data Rate (Max): 14 Gb/s, PCB Contact Termination Area Plating Material: Tin, Contact Current Rating (Max): .5 A, Termination Method to Printed Circuit Board: Surface Mount, Connector Mounting Type: Board Mount, Centerline (Pitch): .8 mm, PCB Thickness (Recommended): 1.45 mm, Operating Temperature Range: -55 – 105 °C, For Use With Pluggable I/O Products: QSFP+ Cage, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Reel,Tape
Technical specifications
| Connection | SMD | |
| Number of rows | 1 | |
| Version | connector | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated current | 0.5 A | |
| Orientation | angled | |
| Pin number | 38 pole | |
| Grid | 0.8 mm |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
