1775469-6 | TE Connectivity

Pin header, 6 pole, pitch 2 mm, angled, natural, 1775469-6

Order No.: 37P1043
EAN: 4099889951523
MPN:
1775469-6

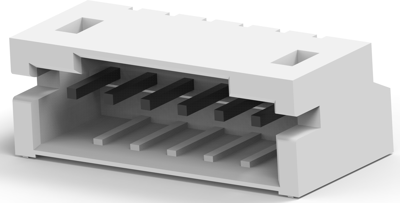

1775469-6 TE Connectivity PCB Connection Systems Image 1

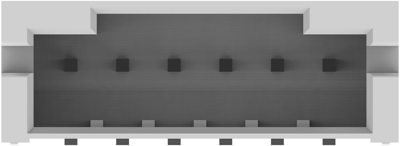

1775469-6 TE Connectivity PCB Connection Systems Image 2

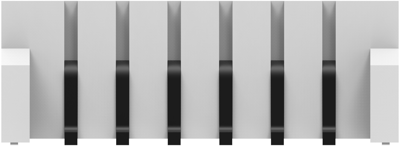

1775469-6 TE Connectivity PCB Connection Systems Image 3

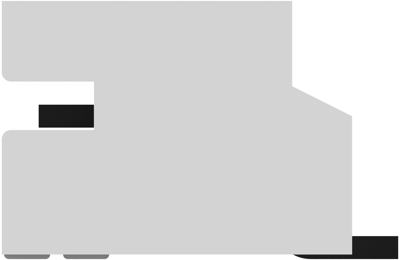

1775469-6 TE Connectivity PCB Connection Systems Image 4

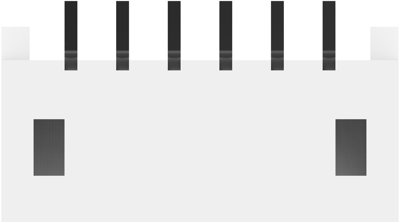

1775469-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7378 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
2,213.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.7378 €

PCB Connection System, 1775469-6, TE Connectivity

Wire-to-Board, Printed Circuit Board, Partially Shrouded, Right Angle, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: PA 9T GF
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 6
  • Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss SMD
Anschlussoberfläche vernickelt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 3 A
Orientierung abgewinkelt
Polzahl 6-polig
Rastermaß 2 mm
Verriegelung Nein
Logistics
Ursprungsland US
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
