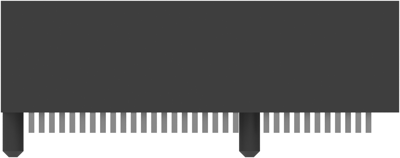

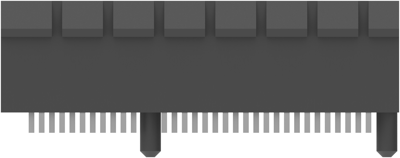

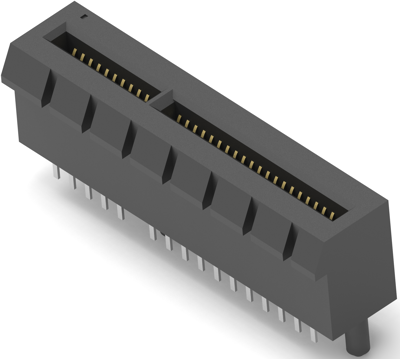

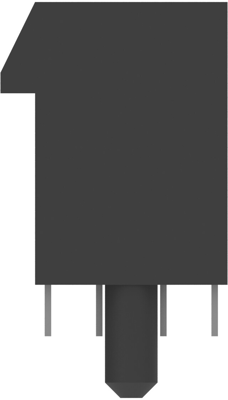

PCI and PCI Express Connectors, 1871058-4, TE Connectivity
Connector System: Board-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Number of PCB Mount Retention Features: 2, Number of Positions: 164, PCB Mount Orientation: Vertical, Ejector: Without, Operating Voltage: 50 VAC, Product Weight: 2.863 g, Contact Base Material: Copper Alloy, Contact Mating Area Plating Material Thickness: , Contact Current Rating (Max): 1.1 A, Termination Method to Printed Circuit Board: Through Hole - Press-Fit, Termination Post & Tail Length: 2 mm, Connector Mounting Type: Board Mount, Housing Material: High Temperature Thermoplastic, Centerline (Pitch): 1 mm, Housing Color: Black, PCB Thickness (Recommended): 1.6 mm, Connector Height: 11 mm, Connector Width: 8.88 mm, Operating Temperature Range: -40 – 85 °C, Circuit Application: Signal, Bus Type: PCI Express, PCI Generation: II & III, Packaging Method: Box & Tray,Tray
