1877285-3 | TE Connectivity

Pin header, 3 pole, pitch 3.96 mm, straight, white, 1877285-3

Order No.: 34P7121
EAN: 4099889913682
MPN:
1877285-3
Series: Economy Power

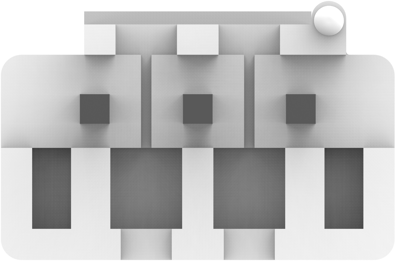

1877285-3 TE Connectivity PCB Connection Systems Image 1

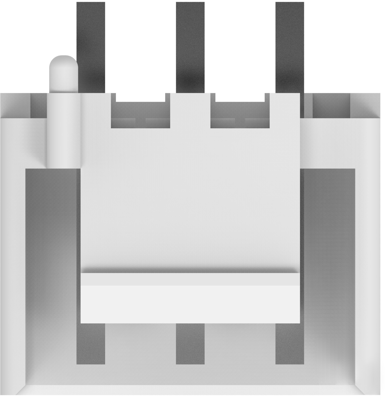

1877285-3 TE Connectivity PCB Connection Systems Image 2

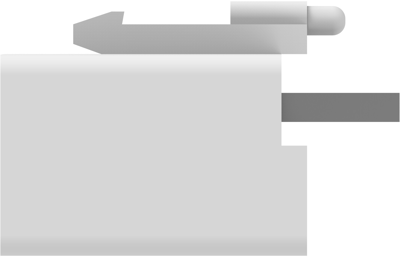

1877285-3 TE Connectivity PCB Connection Systems Image 3

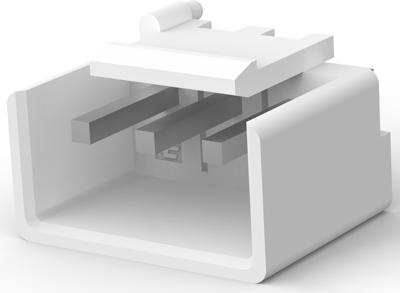

1877285-3 TE Connectivity PCB Connection Systems Image 4

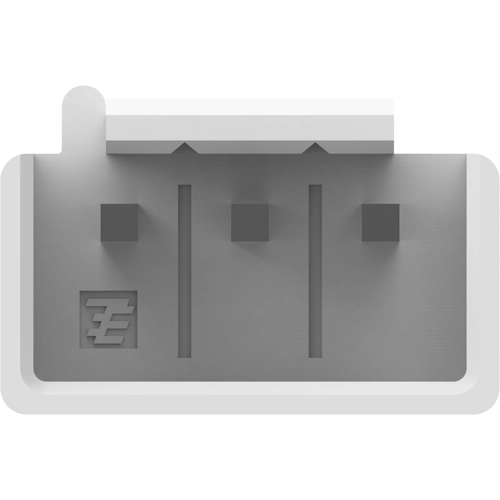

1877285-3 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2404 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
6,009.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25000 pcs.
0.2404 €

PCB Connection System, 1877285-3, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: PBT GF
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 8 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection PCB connection
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Breakable No
Colour white
Contact type pin
contact surface tin-plated
Rated voltage 250 V
Rated current 8 A
Orientation straight
Pin number 3 pole
Grid 3.96 mm
Type of locking Yes
Logistics
Country of origin GB
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
