1888247-2 | TE Connectivity

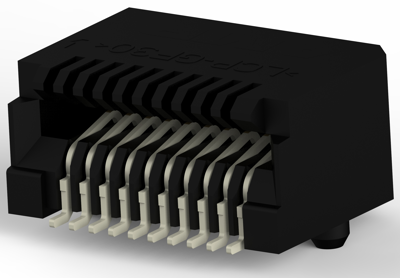

Connector, 20 pole, pitch 0.8 mm, angled, black, 1888247-2
Order No.: 37P2513
EAN: 4099889824414
MPN:
1888247-2
Unit Price (€ / pc.)
1.6541 € *
Available: 0 pcs.
Available in 5 Days: 4,320 pcs.
Leadtime: 4 Weeks **
Total Price:
1.65 € *
Price list
Quantity
Price per unit*
480 pcs.
1.6541 €
960 pcs.
1.5470 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cage Assembly, 1888247-2, TE Connectivity
Form Factor: SFP+, Pluggable I/O Product Type: Connector, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 20, Data Rate (Max): 16 Gb/s, Contact Mating Area Plating Thickness: 0.38 µm, Contact Current Rating (Max): 0.5 A, Termination Method to Printed Circuit Board: Surface Mount, PCB Mounting Style: Surface Mount, Connector Mounting Type: Board Mount, Centerline (Pitch): 0.8 mm, Operating Temperature Range: -55 – 85 °C, For Use With Pluggable I/O Products: SFP+ Cage, Pluggable I/O Applications: SFP, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Reel, Comment: Lubricant on contact.
Technical specifications
| Connection | SMD | |
| Number of rows | 1 | |
| Version | connector | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated current | 0.5 A | |
| Orientation | angled | |
| Pin number | 20 pole | |
| Grid | 0.8 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
