1934218-1 | TE Connectivity

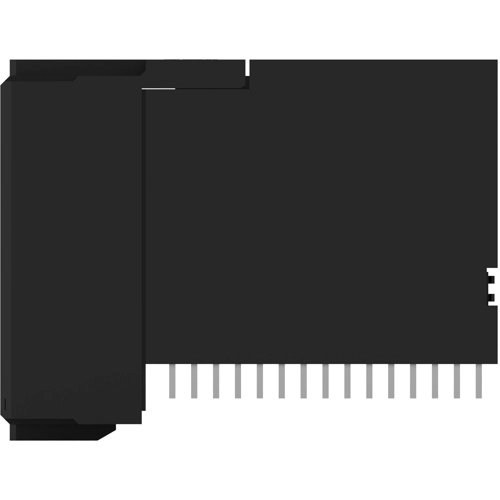

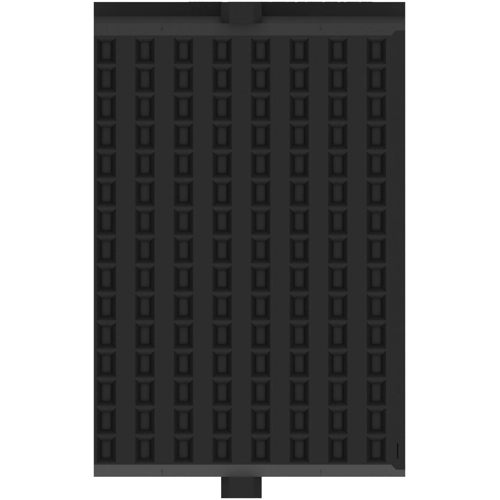

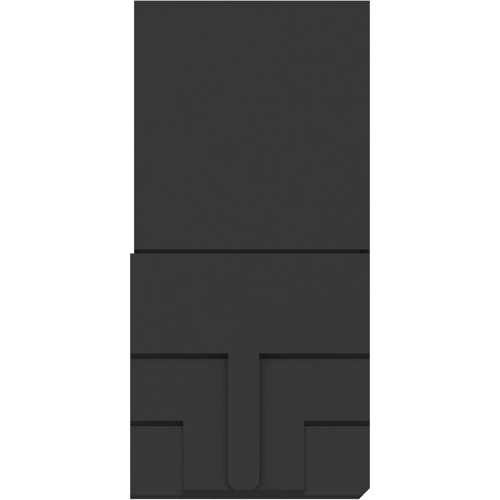

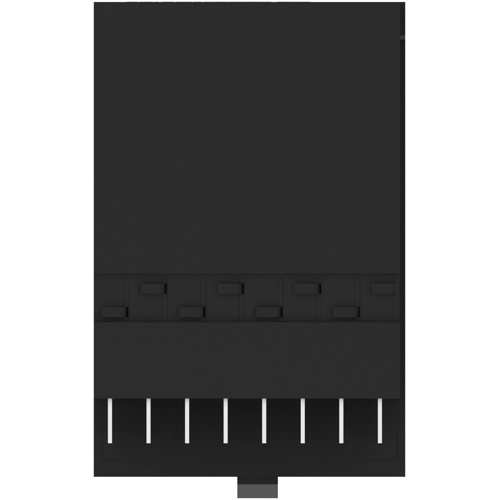

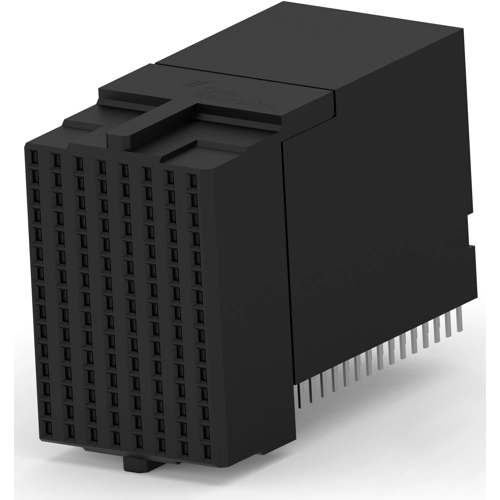

Socket header, 120 pole, pitch 1.9 mm, angled, black, 1934218-1
As a private customer, you can buy this item as soon as we have it back in stock.
PCB Connection System, 1934218-1, TE Connectivity
Board-to-Board, Printed Circuit Board, Right Angle, 120 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: LCP (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: angled
- Number of positions: 120
- Operating Temperature Range: -65 – 90 °C [-85 – 194 °F]
- Rated current: 0.5 A
- Centerline (Pitch): 1.9 mm
- Row-to-Row Spacing: 1.4 mm [0.055 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Anschluss | Press-fit | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 15 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Brechbar | No | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 250 V | |
| Nennstrom | 500 mA | |
| Orientierung | abgewinkelt | |
| Polzahl | 120-polig | |
| Rastermaß | 1.9 mm | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
