1934226-1 | TE Connectivity

Socket header, 72 pole, pitch 1.9 mm, angled, black, 1934226-1

Order No.: 37P3749
EAN: 4099889954401
MPN:
1934226-1
Series: Z-PACK

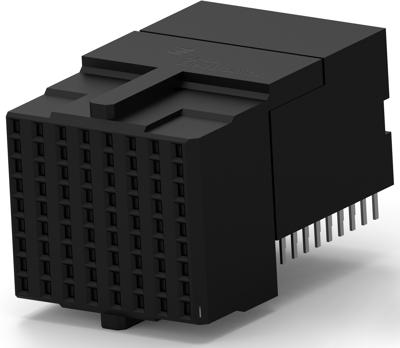

1934226-1 TE Connectivity PCB Connection Systems Image 1

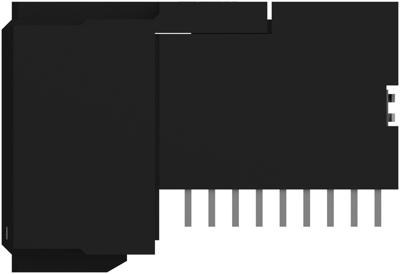

1934226-1 TE Connectivity PCB Connection Systems Image 2

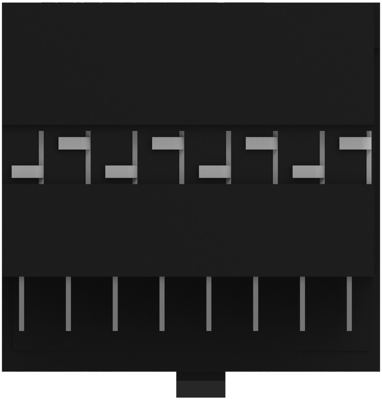

1934226-1 TE Connectivity PCB Connection Systems Image 3

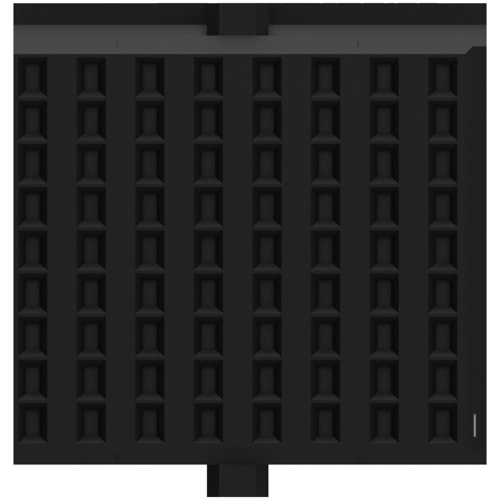

1934226-1 TE Connectivity PCB Connection Systems Image 4

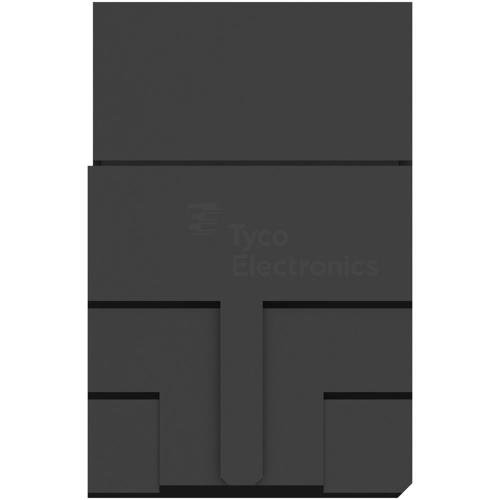

1934226-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
17.3740 € *
Available: 0 pcs.
Available in 5 Days: 12,331 pcs.
Leadtime: 11 Weeks **
Total Price:
17.37 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3740 €
10 pcs.
15.9936 €
50 pcs.
14.3871 €
100 pcs.
12.9472 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1934226-1, TE Connectivity

Board-to-Board, Printed Circuit Board, Right Angle, 72 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: LCP (Liquid Crystal Polymer)
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 72
  • Operating Temperature Range: -65 – 90 °C [-85 – 194 °F]
  • Rated current: 0.5 A
  • Centerline (Pitch): 1.9 mm
  • Row-to-Row Spacing: 1.4 mm [0.055 in]
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Version Buchsenleiste
Contact type Buchse
Pin number 72-polig
Grid 1.9 mm
Connection Press-fit
Orientation abgewinkelt
Type of locking Nein
contact surface vergoldet
Connection plating verzinnt
Rated voltage 250 V
Rated current 500 mA
Additional parts bestückt
Number of rows 9
Breakable No
Colour schwarz
Logistics
Country of origin US
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
