1934304-1 | TE Connectivity

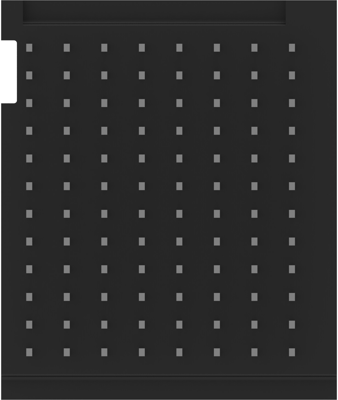

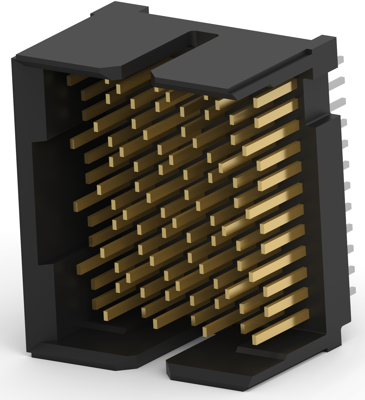

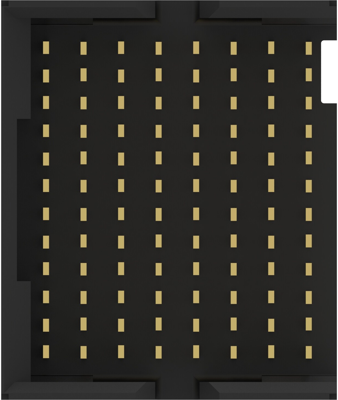

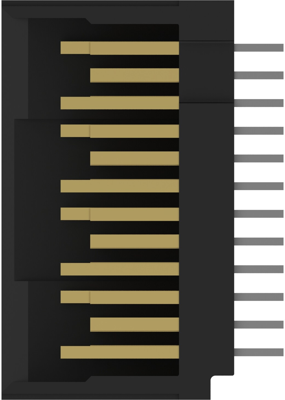

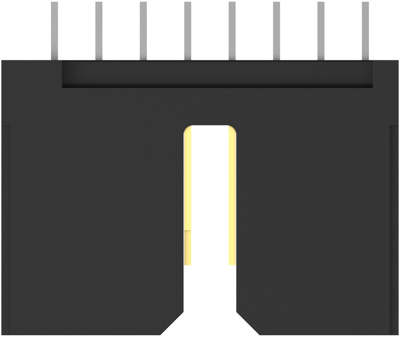

Pin header, 96 pole, pitch 1.9 mm, straight, black, 1934304-1
Unit Price (€ / pc.)
13.1852 € *
Available: 0 pcs.
Available in 5 Days: 988 pcs.
Leadtime: 13 Weeks **
Total Price:
13.19 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1852 €
10 pcs.
12.1380 €
50 pcs.
10.9242 €
100 pcs.
9.8294 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1934304-1, TE Connectivity
Board-to-Board, Printed Circuit Board, Vertical, 96 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: LCP (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: straight
- Number of positions: 96
- Operating Temperature Range: -65 – 90 °C [-85 – 194 °F]
- Rated current: 0.5 A
- Centerline (Pitch): 1.9 mm
- Row-to-Row Spacing: 1.4 mm [0.055 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Anschluss | Press-fit | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 12 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Brechbar | No | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 250 V | |
| Nennstrom | 500 mA | |
| Orientierung | gerade | |
| Polzahl | 96-polig | |
| Rastermaß | 1.9 mm | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
