1934306-1 | TE Connectivity

Pin header, 96 pole, pitch 1.9 mm, straight, black, 1934306-1

Order No.: 37P3751
EAN: 4099889954425
MPN:
1934306-1
Series: Z-PACK

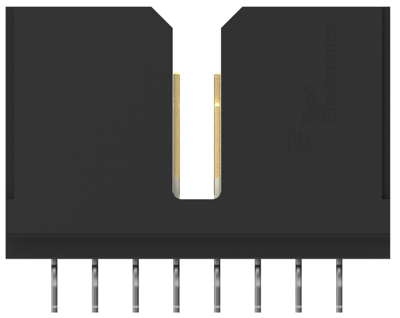

1934306-1 TE Connectivity PCB Connection Systems Image 1

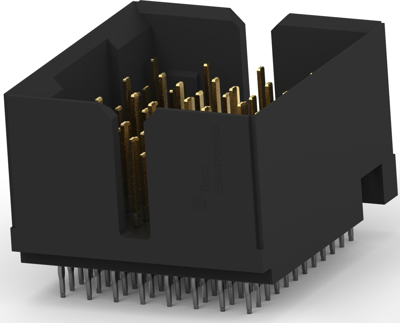

1934306-1 TE Connectivity PCB Connection Systems Image 2

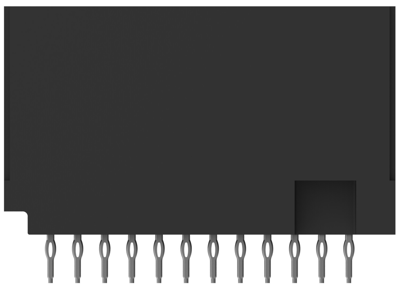

1934306-1 TE Connectivity PCB Connection Systems Image 3

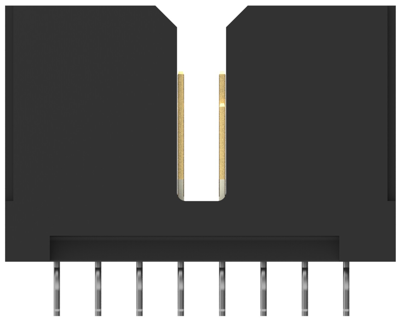

1934306-1 TE Connectivity PCB Connection Systems Image 4

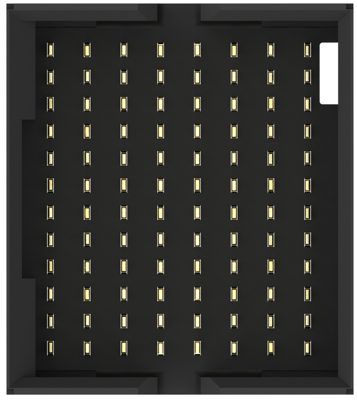

1934306-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
13.4827 € *
Available: 0 pcs.
Available in 5 Days: 4,686 pcs.
Leadtime: 11 Weeks **
Total Price:
13.48 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4827 €
10 pcs.
12.4117 €
50 pcs.
11.1622 €
100 pcs.
10.0555 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1934306-1, TE Connectivity

Board-to-Board, Printed Circuit Board, Vertical, 96 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: LCP (Liquid Crystal Polymer)
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 96
  • Operating Temperature Range: -65 – 90 °C [-85 – 194 °F]
  • Rated current: 0.5 A
  • Centerline (Pitch): 1.9 mm
  • Row-to-Row Spacing: 1.4 mm [0.055 in]
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Version Stiftleiste
Contact type Stift
Pin number 96-polig
Grid 1.9 mm
Connection Press-fit
Orientation gerade
Type of locking Nein
contact surface vergoldet
Connection plating verzinnt
Rated voltage 250 V
Rated current 500 mA
Additional parts bestückt
Number of rows 12
Breakable No
Colour schwarz
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
