1934346-1 | TE Connectivity

Pin header, 144 pole, pitch 1.9 mm, straight, black, 1934346-1

Order No.: 37P3743
EAN: 4099889954364
MPN:
1934346-1

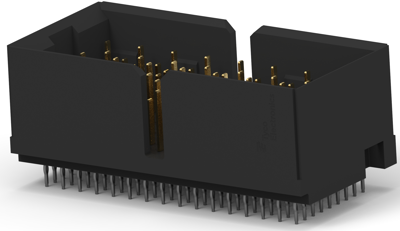

1934346-1 TE Connectivity PCB Connection Systems Image 1

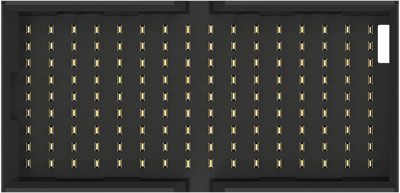

1934346-1 TE Connectivity PCB Connection Systems Image 2

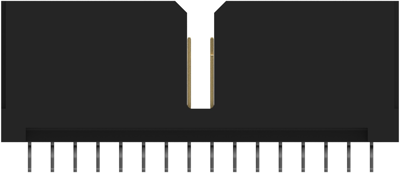

1934346-1 TE Connectivity PCB Connection Systems Image 3

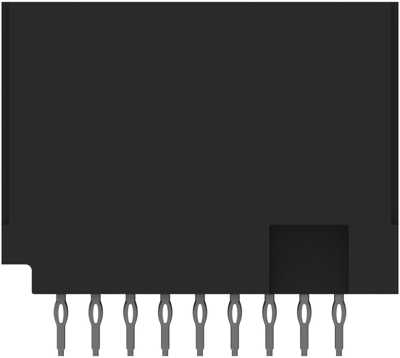

1934346-1 TE Connectivity PCB Connection Systems Image 4

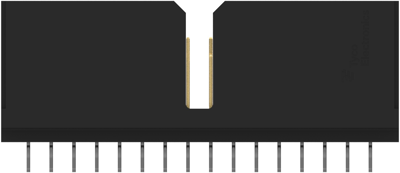

1934346-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
19.0281 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
9,133.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
480 pcs.
19.0281 €

PCB Connection System, 1934346-1, TE Connectivity

Board-to-Board, Printed Circuit Board, Vertical, 144 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: LCP (Liquid Crystal Polymer)
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 144
  • Operating Temperature Range: -65 – 90 °C [-85 – 194 °F]
  • Rated current: 0.5 A
  • Centerline (Pitch): 1.9 mm
  • Row-to-Row Spacing: 1.4 mm [0.055 in]
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Version Stiftleiste
Contact type Stift
Pin number 144-polig
Grid 1.9 mm
Connection Press-fit
Orientation gerade
Type of locking Nein
contact surface vergoldet
Connection plating verzinnt
Rated voltage 250 V
Rated current 500 mA
Additional parts bestückt
Number of rows 9
Breakable No
Colour schwarz
Logistics
Country of origin CN
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
