1982633-1 | TE Connectivity

Connector, 3 pole, pitch 3 mm, angled, black, 1982633-1

Order No.: 37P1287
EAN: 4099889952674
MPN:
1982633-1

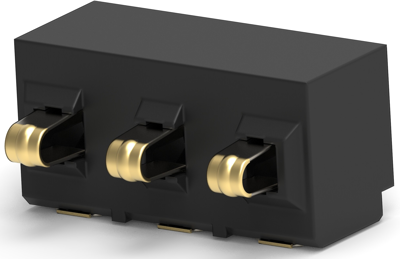

1982633-1 TE Connectivity PCB Connection Systems Image 1

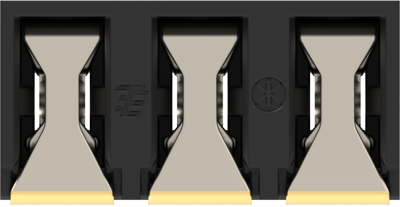

1982633-1 TE Connectivity PCB Connection Systems Image 2

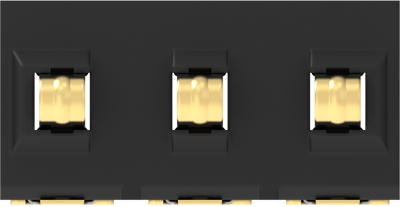

1982633-1 TE Connectivity PCB Connection Systems Image 3

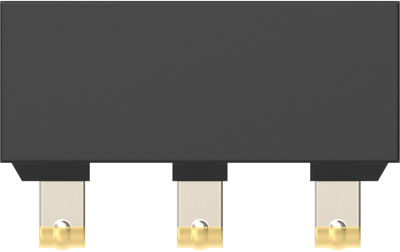

1982633-1 TE Connectivity PCB Connection Systems Image 4

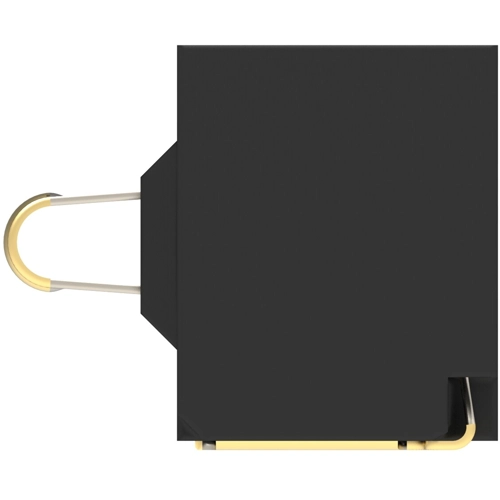

1982633-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0948 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
5,474.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
1.0948 €

PCB Connection System, 1982633-1, TE Connectivity

Board-to-Board, Printed Circuit Board, Right Angle, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Base Material: Copper Alloy
  • Housing Material: LCP (Liquid Crystal Polymer)
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 3
  • Operating Temperature Range: -20 – 80 °C [-4 – 158 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 3 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Number of rows 1
Additional parts unbestückt
Breakable No
Colour schwarz
Contact type Buchse
contact surface vergoldet
Rated voltage 150 V
Rated current 3 A
Orientation abgewinkelt
Pin number 3-polig
Grid 3 mm
Type of locking Nein
Logistics
Country of origin TW
Customs tariff number 85369001
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
