2-1827863-0 | TE Connectivity

Socket header, 40 pole, pitch 2 mm, straight, black, 2-1827863-0

Order No.: 38P6794
EAN: 4099889973068
MPN:
2-1827863-0
Series: DYNAMIC

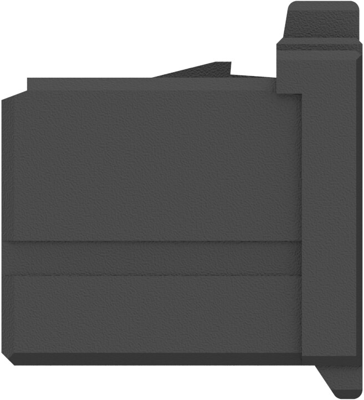

2-1827863-0 TE Connectivity PCB Connection Systems Image 1

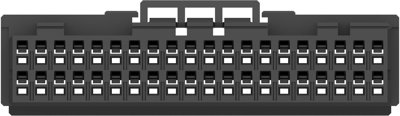

2-1827863-0 TE Connectivity PCB Connection Systems Image 2

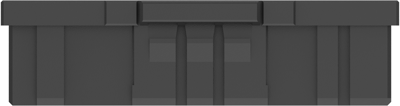

2-1827863-0 TE Connectivity PCB Connection Systems Image 3

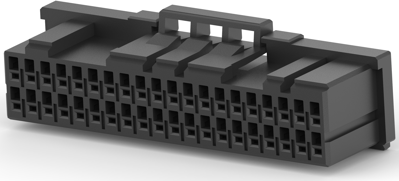

2-1827863-0 TE Connectivity PCB Connection Systems Image 4

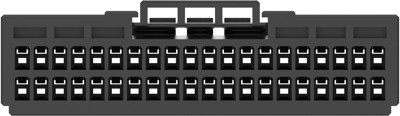

2-1827863-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.5946 € *
Available: 0 pcs.
Leadtime: 27 Weeks **
Total Price:
2,551.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1600 pcs.
1.5946 €

PCB Connection System, 2-1827863-0, TE Connectivity

Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 40 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 40
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2 mm
  • Row-to-Row Spacing: 3.3 mm [0.129 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Buchsenleiste
Bestückung unbestückt
Brechbar No
Farbe schwarz
Kontaktart Buchse
Nennspannung 250 V
Orientierung gerade
Polzahl 40-polig
Rastermaß 2 mm
Verriegelung Ja
Logistics
Ursprungsland SG
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
