2-1971896-4 | TE Connectivity

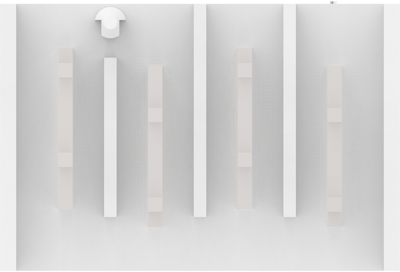

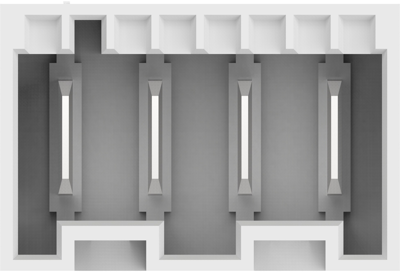

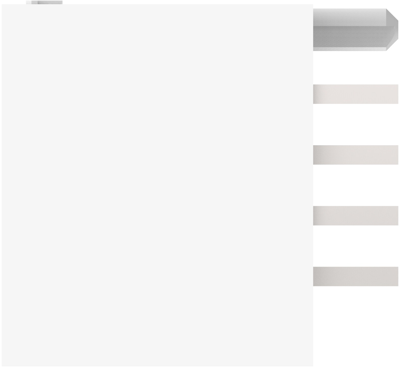

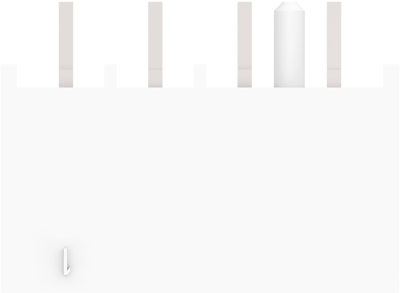

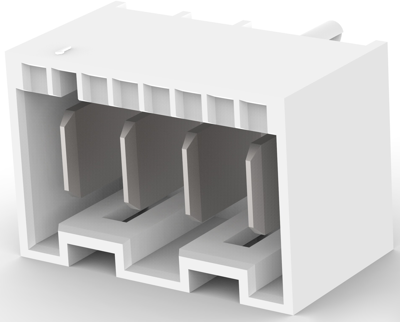

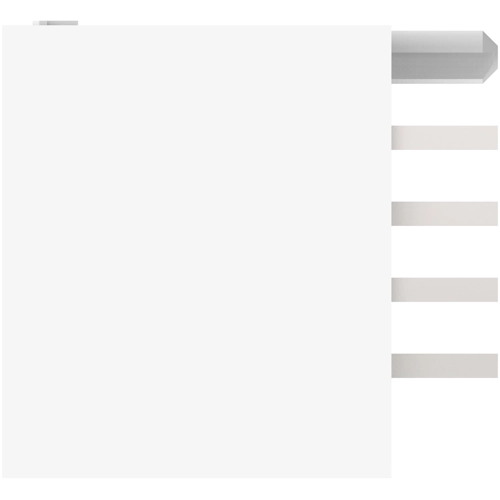

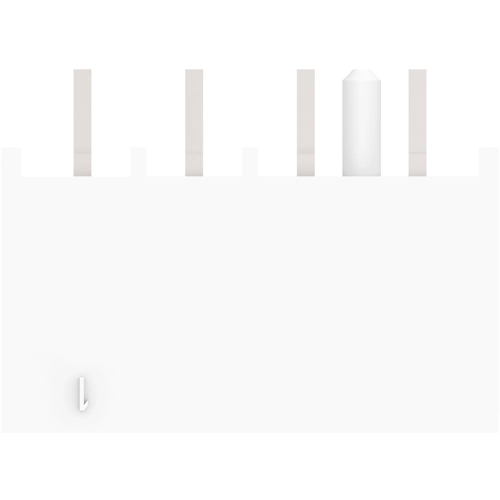

Pin header, 4 pole, pitch 5 mm, straight, natural, 2-1971896-4
Order No.: 35P4137
EAN: 4099889932737
MPN:
2-1971896-4
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Available in 5 Days: 870 pcs.
Leadtime: 22 Weeks **
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.6303 €
50 pcs.
1.4637 €
100 pcs.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 2-1971896-4, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 4
- Operating Temperature Range: -40 – 120 °C [-40 – 248 °F]
- Rated current: 20 A
- Centerline (Pitch): 5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 4-polig | |
| Grid | 5 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | versilbert | |
| Connection plating | versilbert | |
| Rated voltage | 250 V | |
| Rated current | 20 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | natur |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
